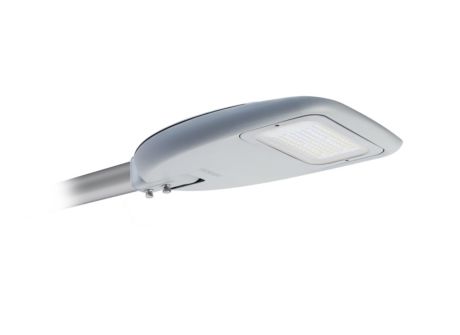

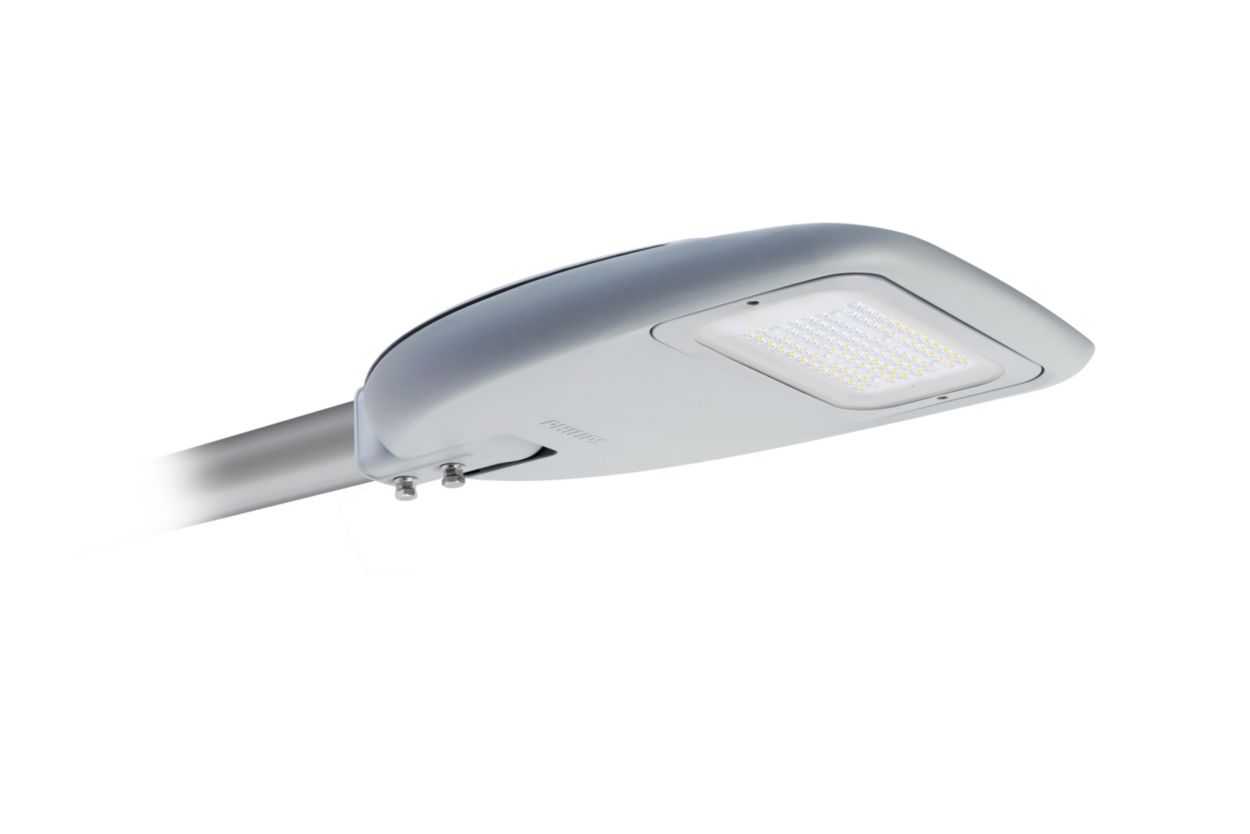

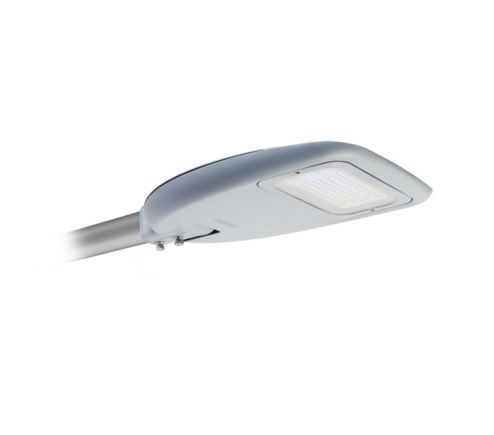

BRP711 LED60/NW 44W 12V DM 6.0M

Specifications Show all

Operating and Electrical

Input Voltage

24 V

Over Time Performance (IEC Compliant)

Median useful life L70B50

50,000 hour(s)

Approval and Application

Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Mech. impact protection code	IK10  [20 J vandal-resistant]

Product Data

Order code	824110104951
Order product name	BRP711 LED60/NW 44W 12V DM 6.0M
Material number (12NC)	824110104951
Numerator - Packs per outer box	1
Numerator - Quantity Per Pack	1
Full product name	BRP711 LED60/NW 44W 12V DM 6.0M

Controls and Dimming

Configurability	Configurable
Dimmable	Yes

General Information

Driver included

No

Mechanical and Housing

Dimensions (Height x Width x Depth)	161 x 595 x 390 mm
Overall width	595 mm
Overall length	390 mm
Overall height	161 mm
Housing Color	RAL 7011
Material	Pressure die cast aluminum

Application Conditions

Grid connection type	Off grid
Battery location	Inside the pole
Solar dimming profile	Dusk to 3 hrs -100%  [Next 5hrs- 40%]

Temperature

Ambient temperature range

0 to +35 °C

Light Technical

Color rendering index (CRI)	>70
Correlated Color Temperature (Nom)	4000 K
Luminous Flux	6,000 lumen
Optical cover/lens type	Polycarbonate
Luminous Efficacy (rated) (Nom)	150 lm/W
