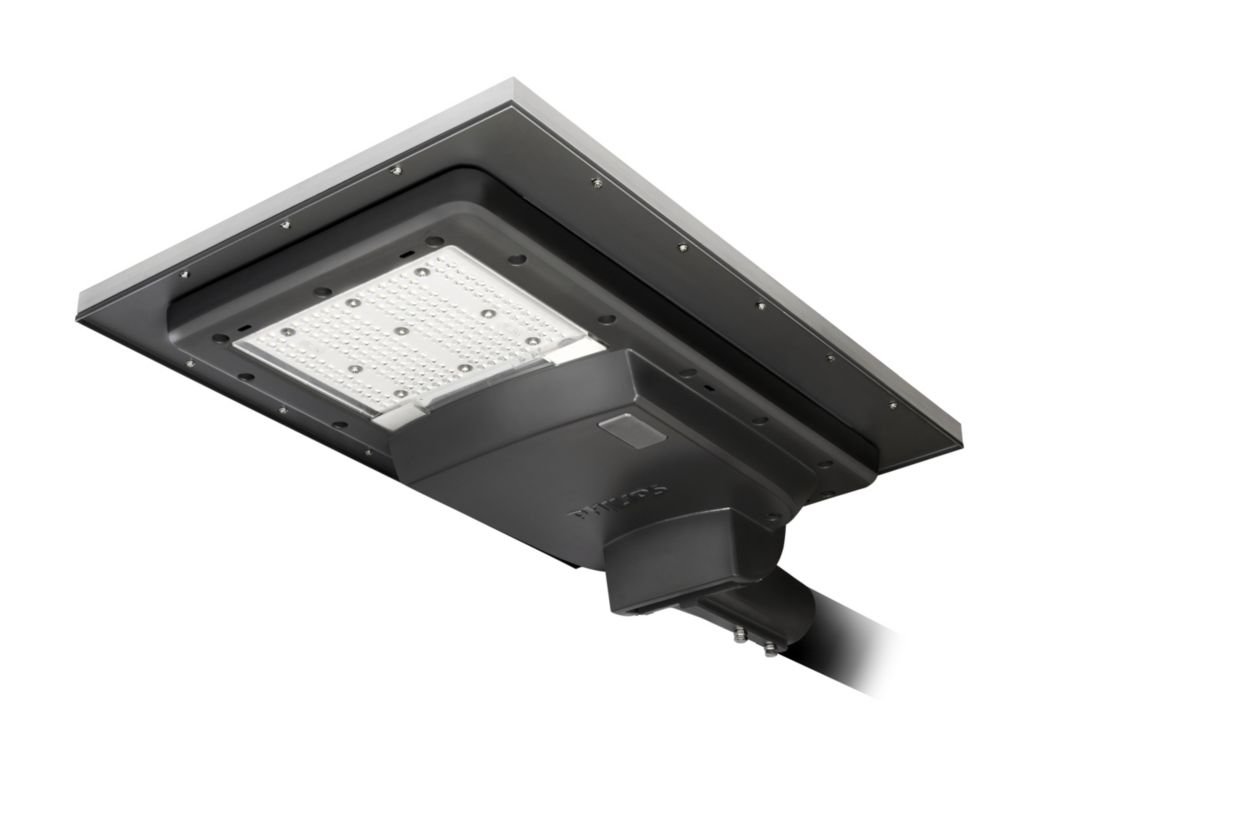

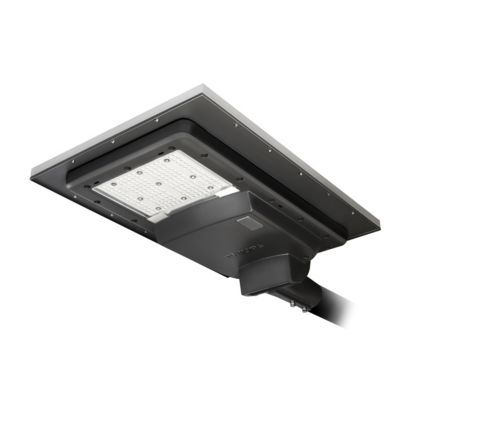

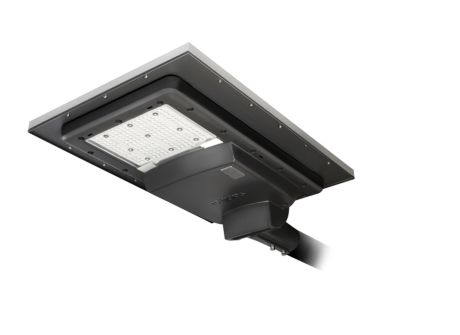

BRP710 LED60 CW MR HY FDIM20 SOLAR

Specifications Show all

Operating and Electrical

Panel peak wattage	60 W
Input Frequency	50 Hz
Battery voltage	12.8 V
Cable	Cable 0.8m, 2-core, 1.5mm2
Line Frequency	50 Hz
Battery type	Lithium Ferro Phosphate
Charge controller type	MPPT
Input Voltage	240 V
Panel type	Mono crystalline
Battery charging & discharging cycles	2000
Charge controller wattage	35 W
Panel voltage	17 Vmp, 21 Voc V
Cable connection kit	Included
Battery ampere hour	30 Ah

Over Time Performance (IEC Compliant)

Median useful life L70B50

50,000 hour(s)

Approval and Application

Surge Protection (Common/Differential)	Surge protection level until 4 kV
Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [5 J vandal-protected]
Warranty period	3 years
EU RoHS compliant	Yes
CE mark	CE mark

Product Data

Order code	919515813979
Order product name	BRP710 LED60 CW MR HY FDIM20 SOLAR
Material number (12NC)	919515813979
EAN/UPC - Case	8719514501850
Full product code	871951450185000
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
Full product name	BRP710 LED60 CW MR HY FDIM20 SOLAR

Controls and Dimming

Configurability	Factory Configurable
Dimmable	Yes

General Information

Driver included

Yes

Mechanical and Housing

Dimensions (Height x Width x Depth)	188 x 511 x 757 mm
Overall width	511 mm
Overall length	757 mm
Overall height	188 mm
Housing Color	RAL 7011
Material	Pressure die cast aluminum

Application Conditions

Grid connection type	Hybrid
Ambient temperature range for charging	0 °C to +45 °C °C
Ambient temperature range for discharging (when light is on)	-20 °C to +35 °C °C
Battery location	Inside Luminaire
Solar dimming profile	4hrs 100% + 8 hrs 20%

Temperature

Ambient temperature range

0 to +35 °C

Light Technical

Color rendering index (CRI)	>70
Correlated Color Temperature (Nom)	5700 K
Luminous Flux	6,000 lumen
Optical cover/lens type	UV stabilized Polycarbonate cover
Luminous Efficacy (rated) (Nom)	175 lm/W
