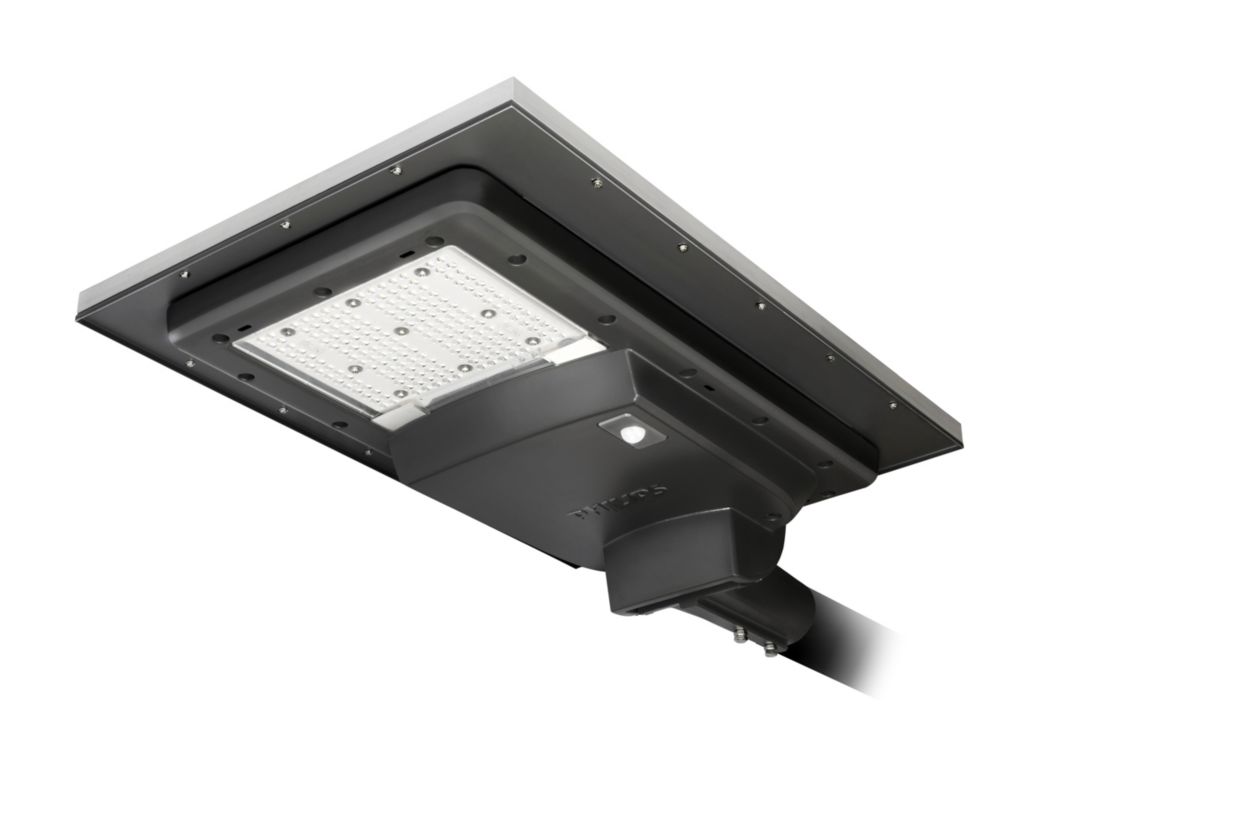

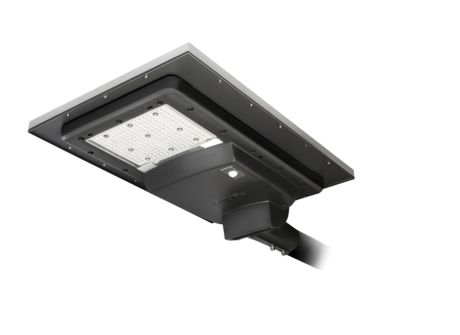

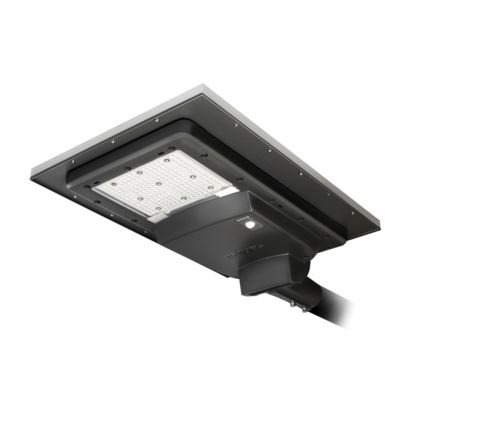

BRP710 LED45 WW MR S1 12V FD30 Solar

Specifications Show all

Operating and Electrical

Panel peak wattage	60 W
Battery voltage	12.8 V
Battery type	Lithium Ferro Phosphate
Charge controller type	MPPT
Panel voltage	17 Vmp, 21 Voc V
Panel type	Mono crystalline
Battery charging & discharging cycles	2000
Battery ampere hour	30 Ah

Over Time Performance (IEC Compliant)

Median useful life L70B50

50,000 hour(s)

Approval and Application

Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [5 J vandal-protected]

Product Data

Order code	919515813570
Order product name	BRP710 LED45 WW MR S1 12V FD30 Solar
Material number (12NC)	919515813570
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
Full product code	871016336235900
EAN/UPC - Case	8710163362359
Full product name	BRP710 LED45 WW MR S1 12V FD30 Solar

Controls and Dimming

Configurability	Factory Configurable
Dimmable	Yes

General Information

Driver included

Yes

Mechanical and Housing

Housing Material	Aluminium pressure die cast
Dimensions (Height x Width x Depth)	188 x 511 x 757 mm
Overall width	511 mm
Overall length	757 mm
Overall height	188 mm
Housing Color	Gray

Application Conditions

Grid connection type	Off grid
Ambient temperature range for charging	0 °C to +45 °C °C
Ambient temperature range for discharging (when light is on)	-20 °C to +35 °C °C
Battery location	Inside Luminaire
Solar dimming profile	5hrs 100% + 7 hrs 30%

Temperature

Ambient temperature range

0 to +35 °C

Light Technical

Color rendering index (CRI)	>70
Correlated Color Temperature (Nom)	3000 K
Luminous Flux	4,500 lumen
Light source color	Warm white
Optical cover/lens type	UV stabilized Polycarbonate cover
Luminous Efficacy (rated) (Nom)	175 lm/W
