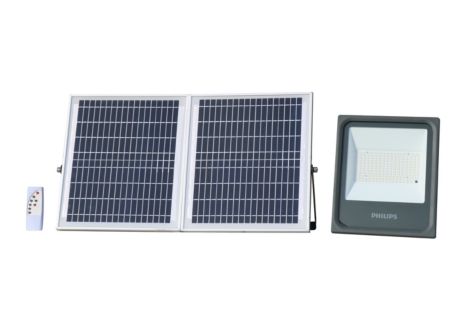

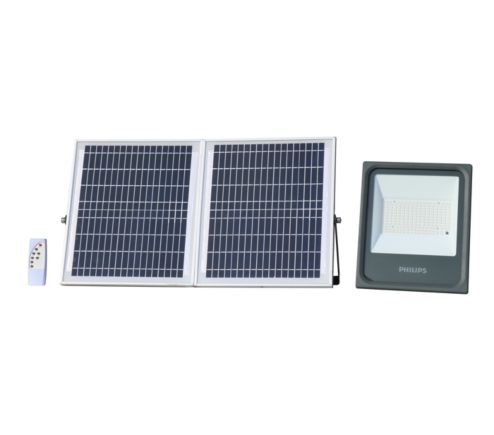

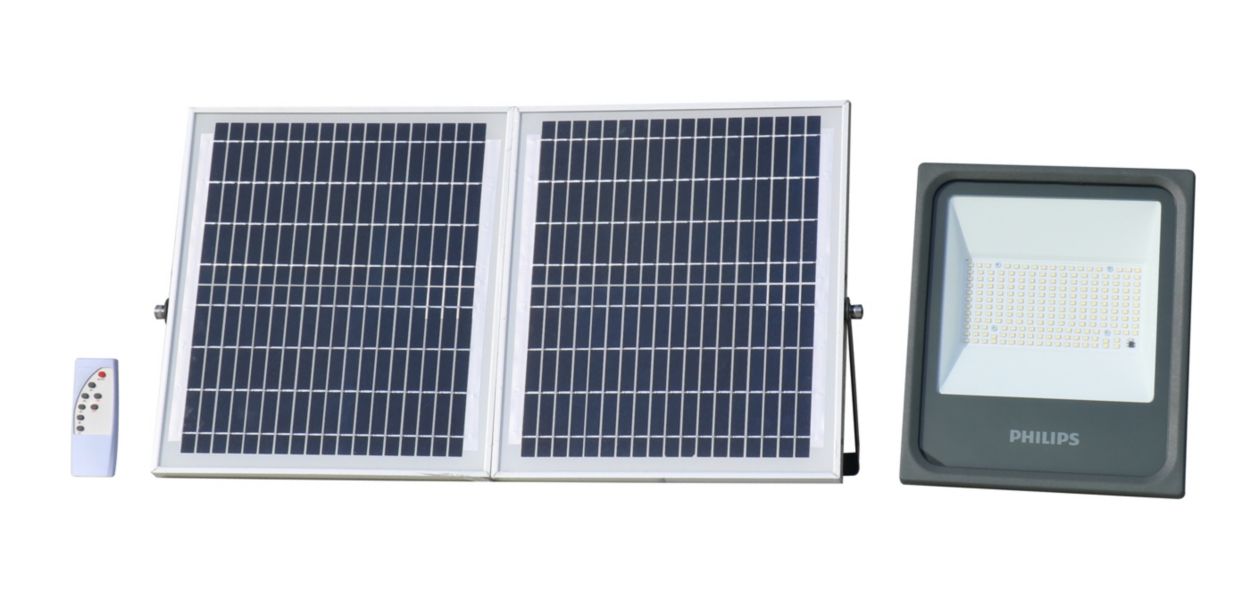

BVP080 LED20/757 100

Specifications Show all

Operating and Electrical

Panel peak wattage	25 W
Battery voltage	12.8 V
Battery type	Lithium Ferro Phosphate
Cable connection kit	Included
Panel voltage	12 V
Panel type	Poly crystalline

Approval and Application

Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Mech. impact protection code	IK07  [2 J reinforced]

Product Data

Order code	911401859781
Order product name	BVP080 LED20/757 100
Material number (12NC)	911401859781
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
EAN/UPC - Case	8719514507432
Full product code	871951450743200
Full product name	BVP080 LED20/757 100

Controls and Dimming

Configurability	Configurable
Dimmable	Wireless Dim

General Information

Driver included

Yes

Mechanical and Housing

Overall length	311 mm
Dimensions (Height x Width x Depth)	65 x 235 x 311 mm
Overall width	235 mm
Overall height	65 mm
Housing Color	RAL 9007
Material	Aluminum

Application Conditions

Grid connection type	Off grid
Battery location	Inside luminaire
Solar dimming profile	As per remote controller

Temperature

Ambient temperature range

0 to +45 °C

Light Technical

Color rendering index (CRI)	>70
Correlated Color Temperature (Nom)	5700 K
Luminous Flux	2,000 lumen
Optical cover/lens type	Reflector
