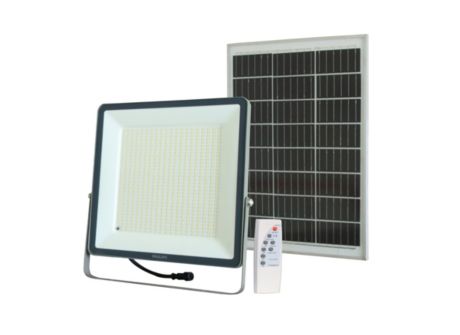

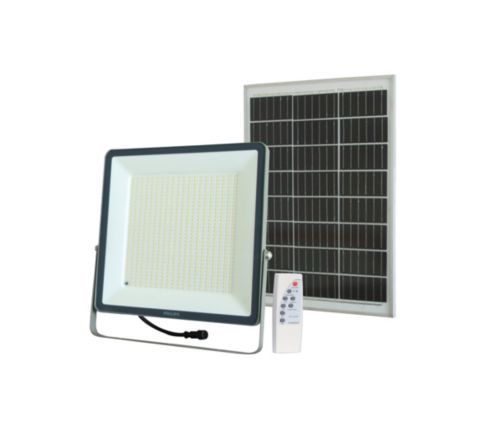

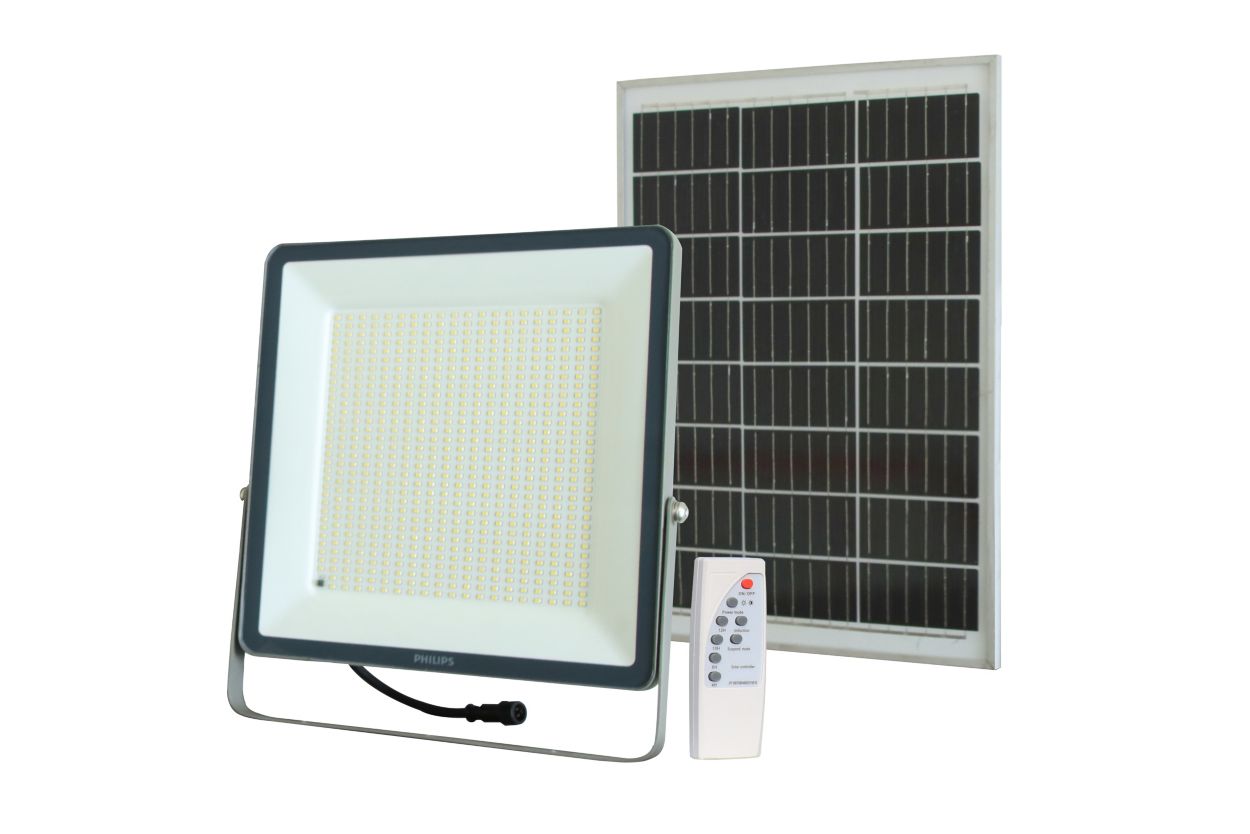

BVP080 LED48/757 200 G2

Specifications Show all

Operating and Electrical

Panel peak wattage	32 W
Battery voltage	9.6 V
Cable	5m cable for Solar panel connection included
Battery type	Lithium Ferro Phosphate
Charge controller type	PWM
Battery ampere hour	12 Ah
Panel voltage	15 V
Panel type	Poly crystalline
Charge controller wattage	32 W

Approval and Application

Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Mech. impact protection code	IK06  [1 J]
Warranty period	2 years
CE mark	CE mark

Product Data

Order code	911401836102
Order product name	BVP080 LED48/757 200 G2
Material number (12NC)	911401836102
Numerator - Quantity Per Pack	1
Full product code	692382865887899
EAN/UPC - Case	6923828658915
Numerator - Packs per outer box	3
Full product name	BVP080 LED48/757 200 G2

Controls and Dimming

Configurability	Configurable
Dimmable	Preset Dimming

General Information

Driver included

Yes

Mechanical and Housing

Dimensions (Height x Width x Depth)	320 x 63 x 332 mm
Overall width	63.1 mm
Overall length	332 mm
Overall height	320 mm
Housing Color	RAL 9007
Material	Pressure die cast aluminum

Application Conditions

Grid connection type	Off grid
Battery location	Inbuilt
Solar dimming profile	Four preset dimming profile selectable by remote controller

Temperature

Ambient temperature range

0 to +50 °C

Light Technical

Color rendering index (CRI)	>80
Correlated Color Temperature (Nom)	5700 K
Luminous Flux	4,800 lumen
Optical cover/lens type	Glass
Luminous Efficacy (rated) (Nom)	150 lm/W
