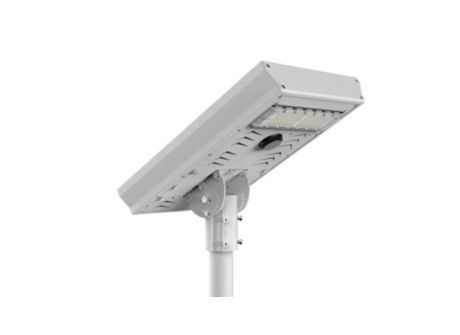

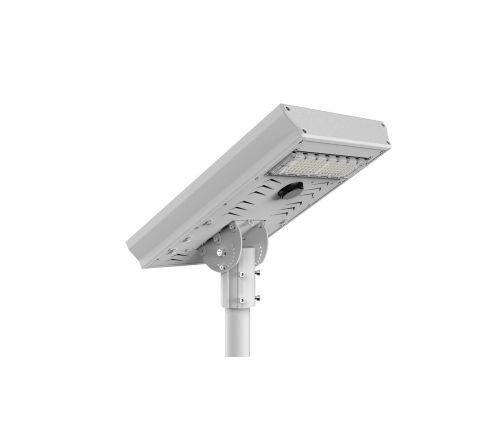

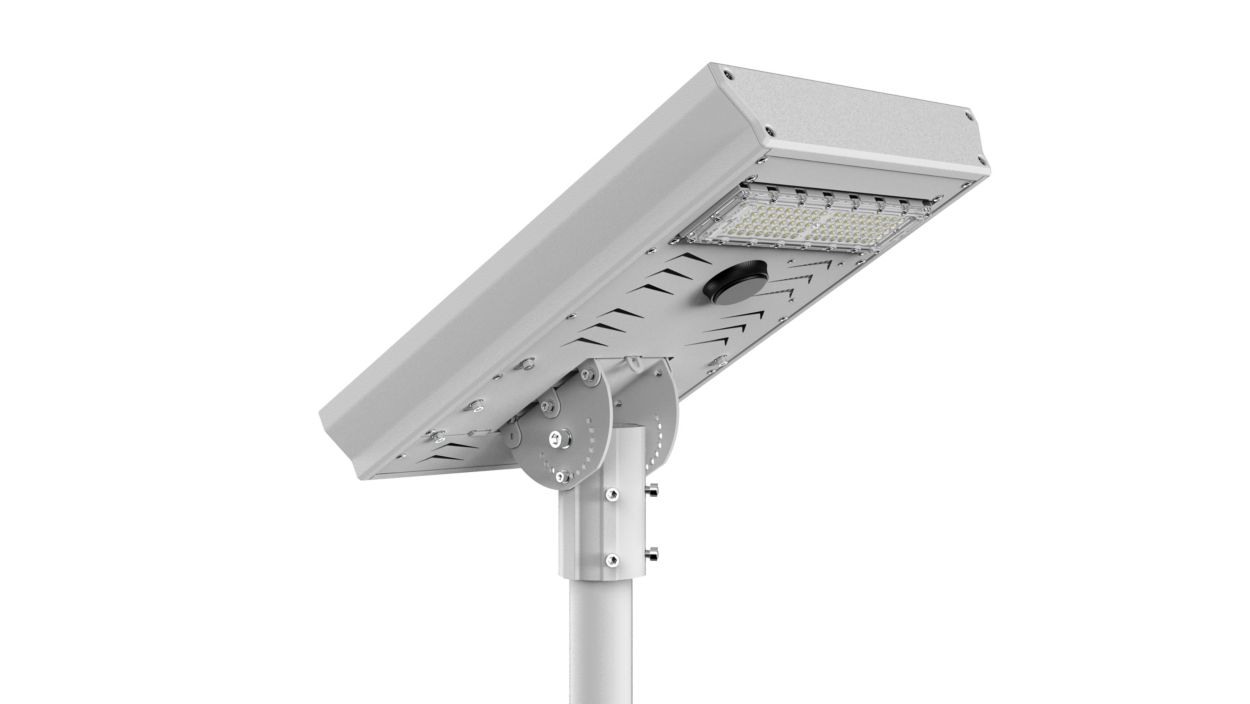

BRP110 LED50/757 G2

Specifications Show all

Operating and Electrical

Panel peak wattage	35 W
Cable	-
Battery voltage	3.2 V
Charge controller type	MPPT
Battery type	Lithium Ferro Phosphate
Battery ampere hour	60 Ah
Panel type	Mono crystalline
Battery charging & discharging cycles	2000
Panel voltage	12 V

Over Time Performance (IEC Compliant)

Median useful life L70B50

50,000 hour(s)

Approval and Application

Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [6 J]
EU RoHS compliant	Yes

Product Data

Order code	911401833902
Order product name	BRP110 LED50/757 G2
Material number (12NC)	911401833902
Numerator - Packs per outer box	1
EAN/UPC - Case	6923828657277
Full product code	692382865727700
Numerator - Quantity Per Pack	1
Full product name	BRP110 LED50/757 G2

Controls and Dimming

Control interface	IR remote
Configurability	Configurable
Dimmable	Yes

General Information

Driver included

Yes

Mechanical and Housing

Dimensions (Height x Width x Depth)	85 x 363 x 562 mm
Overall width	363 mm
Overall length	562 mm
Overall height	85 mm
Housing Color	RAL7040
Material	Aluminum

Application Conditions

Grid connection type	Off grid
Ambient temperature range for charging	0 to +50 °C °C
Ambient temperature range for discharging (when light is on)	-10 to +600C °C
Autonomy	2 hour(s)
Battery location	Inbuilt
Solar dimming profile	First 2 Hrs - On motion : 100%, without motion :30% ; Next 3 Hrs - On motion : 60%, without motion :20% ; Next 6 Hrs On motion : 30%, without motion :10% ; Rest of the Night: On motion : 50%, without motion :30%

Temperature

Ambient temperature range

0 to +50 °C

Light Technical

Color rendering index (CRI)	>70
Correlated Color Temperature (Nom)	5700 K
Luminous Flux	5,000 lumen
Optical cover/lens type	Polycarbonate
Luminous Efficacy (rated) (Nom)	185 lm/W
