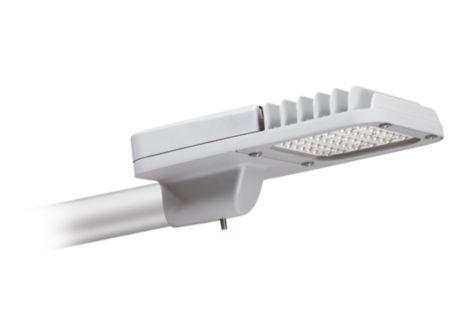

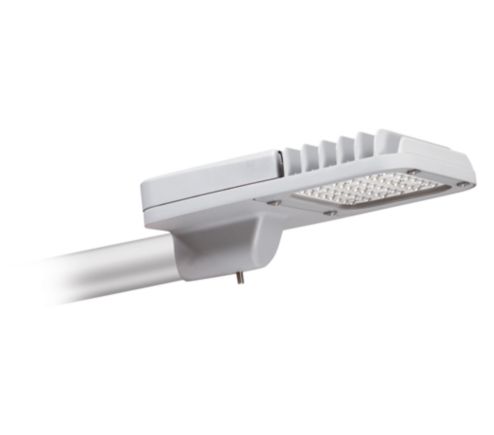

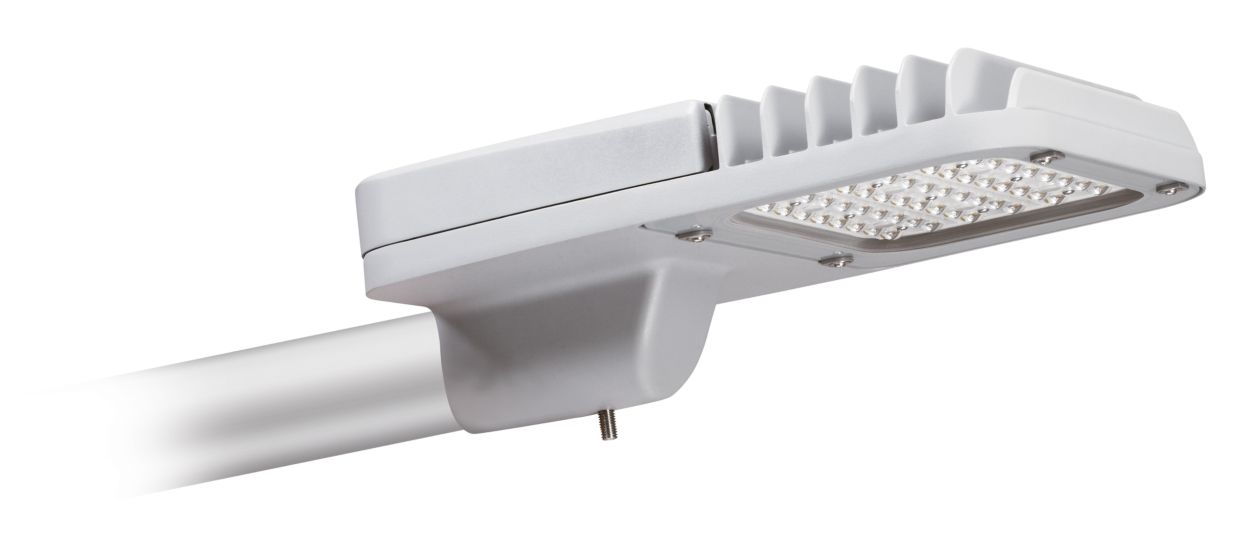

BRP371 LED7500/NW 50W DM SD 12.5m

Specifications Show all

Operating and Electrical

Input Frequency	0 Hz
Battery voltage	12;12.8 V
Cable	12.5 m cable with molex connector
Line Frequency	0 Hz
Battery type	Multiple
Cable connection kit	Included
Input Voltage	24 V

Over Time Performance (IEC Compliant)

Median useful life L70B50

50,000 hour(s)

Approval and Application

Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [5 J vandal-protected]
Warranty period	3 years
EU RoHS compliant	Yes
CE mark	CE mark

Product Data

Order code	911401821302
Order product name	BRP371 LED7500/NW 50W DM SD 12.5m
Material number (12NC)	911401821302
Numerator - Packs per outer box	1
Full product code	911401821302
Numerator - Quantity Per Pack	1
Full product name	BRP371 LED7500/NW 50W DM SD 12.5m

Controls and Dimming

Configurability	Configurable
Dimmable	Yes

General Information

Driver included

No

Mechanical and Housing

Dimensions (Height x Width x Depth)	422 x 136 x 318 mm
Overall width	136 mm
Overall length	318 mm
Overall height	422 mm
Housing Color	RAL7040
Material	Aluminum

Application Conditions

Grid connection type	Offgrid and hybrid (separate Hybrid Charger)
Battery location	Outside Luminaire
Solar dimming profile	As per charge controler settings

Temperature

Ambient temperature range

-30 to +50 °C

Light Technical

Color rendering index (CRI)	>70
Correlated Color Temperature (Nom)	4000 K
Luminous Flux	7,500 lumen
Optical cover/lens type	Flat glass
Luminous Efficacy (rated) (Nom)	150 lm/W
