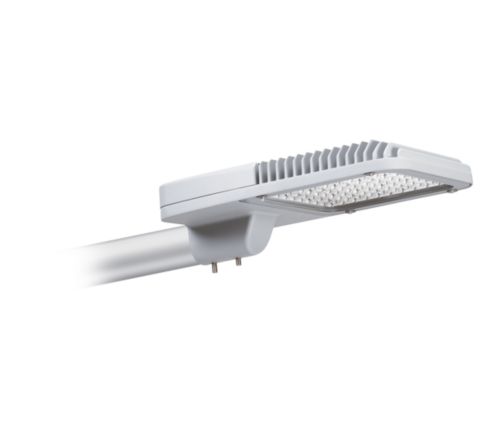

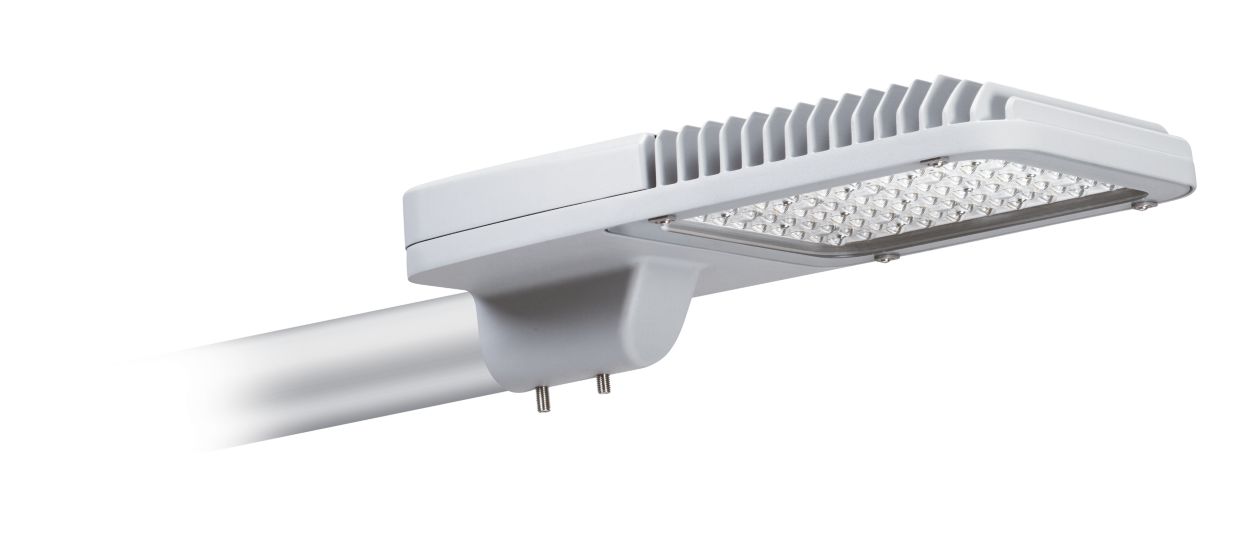

BRP372 LED12500/CW 80W DM SD 12.5m

Specifications Show all

Operating and Electrical

Input Frequency	0 Hz
Cable	12.5 m cable with molex connector
Battery voltage	24;25.6 V
Line Frequency	0 Hz
Battery type	Multiple
Input Voltage	48 V
Cable connection kit	Included

Over Time Performance (IEC Compliant)

Median useful life L70B50

50,000 hour(s)

Approval and Application

Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [5 J vandal-protected]
Warranty period	3 years
EU RoHS compliant	Yes
CE mark	CE mark

Product Data

Order code	911401820902
Order product name	BRP372 LED12500/CW 80W DM SD 12.5m
Material number (12NC)	911401820902
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
Full product code	911401820902
Full product name	BRP372 LED12500/CW 80W DM SD 12.5m

Controls and Dimming

Configurability	Configurable
Dimmable	Yes

General Information

Driver included

No

Mechanical and Housing

Dimensions (Height x Width x Depth)	522 x 136 x 318 mm
Overall width	136 mm
Overall length	318 mm
Overall height	522 mm
Housing Color	RAL7040
Material	Aluminum

Application Conditions

Grid connection type	Offgrid and hybrid (separate Hybrid Charger)
Battery location	Outside Luminaire
Solar dimming profile	As per charge controler settings

Temperature

Ambient temperature range

-30 to +50 °C

Light Technical

Color rendering index (CRI)	>70
Correlated Color Temperature (Nom)	5700 K
Luminous Flux	12,500 lumen
Optical cover/lens type	Flat glass
Luminous Efficacy (rated) (Nom)	156 lm/W
