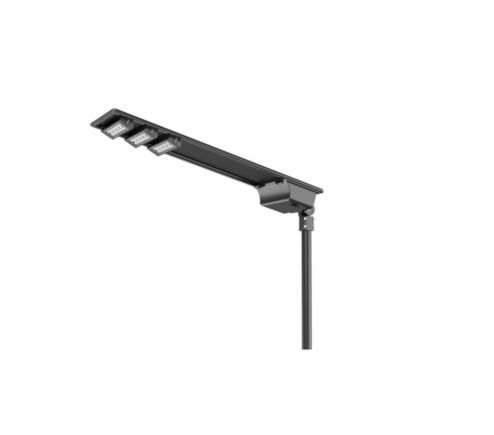

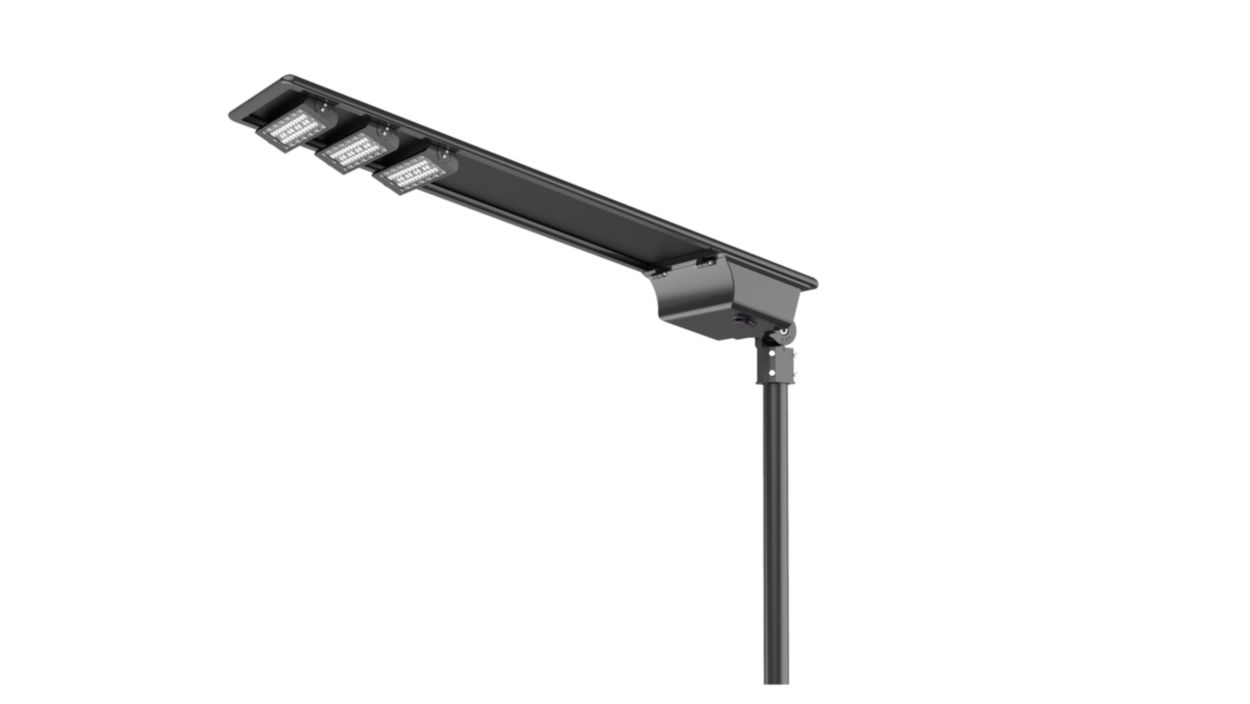

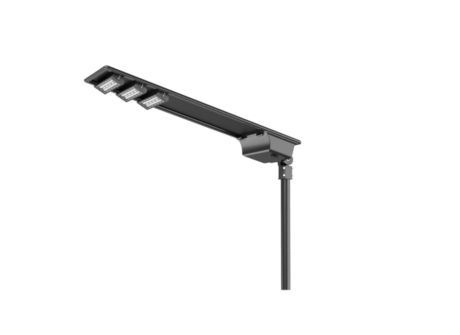

BRP715 LED180 CW Solar

Specifications Show all

Operating and Electrical

Panel peak wattage	80 W
Cable	-
Battery voltage	25.6 V
Charge controller type	MPPT
Battery type	Lithium Ferro Phosphate
Panel voltage	36 V
Panel type	Mono crystalline
Battery charging & discharging cycles	2000
Battery ampere hour	24 Ah

Over Time Performance (IEC Compliant)

Median useful life L70B50

50,000 hour(s)

Approval and Application

Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Warranty period	3 years
EU RoHS compliant	Yes
CE mark	CE mark

Product Data

Order code	911401625908
Order product name	BRP715 LED180 CW Solar
Material number (12NC)	911401625908
Numerator - Packs per outer box	1
Numerator - Quantity Per Pack	1
EAN/UPC - Product	8719514954151
Full product code	871951495415100
EAN/UPC - Case	8719514954151
Full product name	BRP715 LED180 CW Solar

Controls and Dimming

Control interface	IR remote
Configurability	Configurable
Dimmable	Yes

General Information

Driver included

Yes

Mechanical and Housing

Dimensions (Height x Width x Depth)	133 x 366 x 1345 mm
Overall width	366 mm
Overall length	1,345 mm
Overall height	133 mm
Housing Color	Black

Application Conditions

Grid connection type	Off grid
Ambient temperature range for charging	0 °C to +55 °C °C
Ambient temperature range for discharging (when light is on)	-20 °C to +55 °C °C
Battery location	Inbuilt
Solar dimming profile	Dimming along with micriwave sensor

Temperature

Ambient temperature range

-20 to +55 °C

Light Technical

Color rendering index (CRI)	>70
Correlated Color Temperature (Nom)	5700 K
Optical cover/lens type	Polycarbonate
