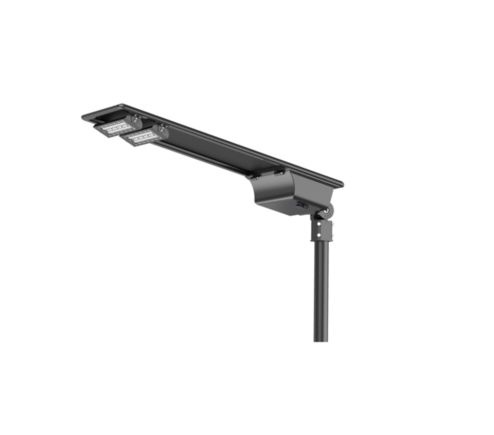

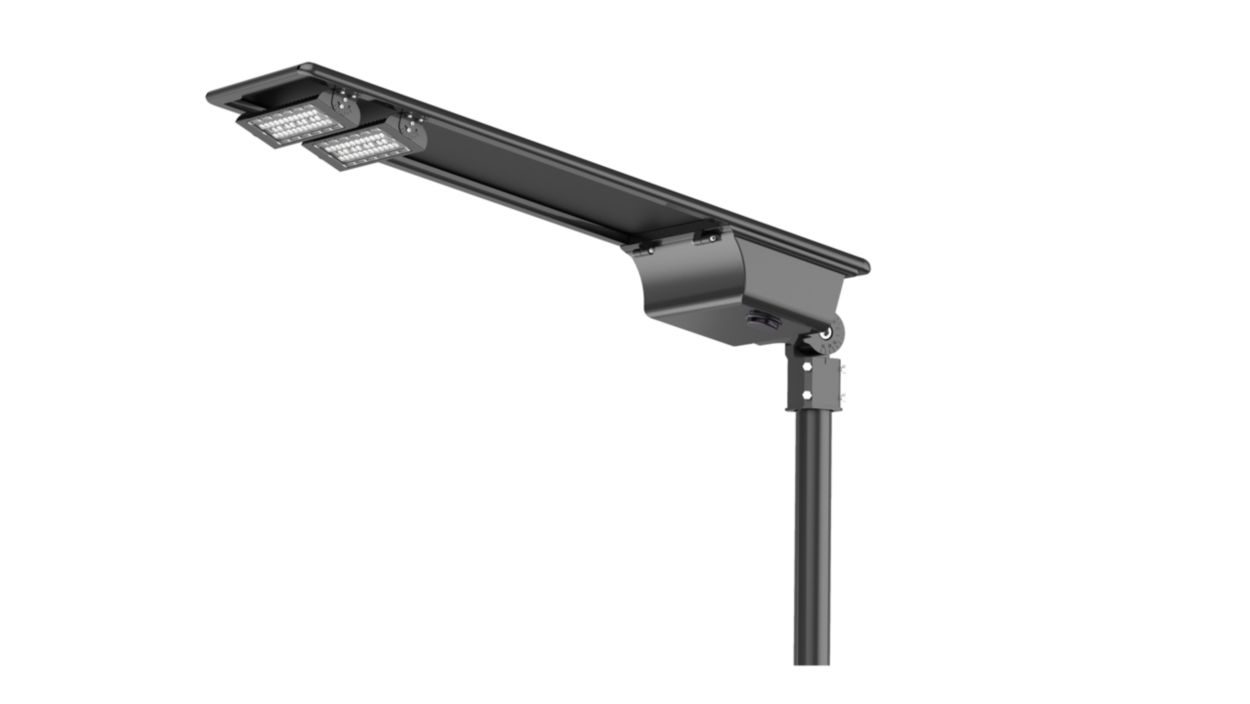

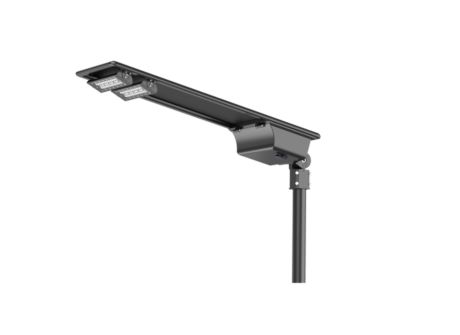

BRP715 LED120 CW Solar

Specifications Show all

Operating and Electrical

Panel peak wattage	60 W
Cable	-
Battery voltage	12.8 V
Battery type	Lithium Ferro Phosphate
Charge controller type	MPPT
Panel voltage	18 V
Battery ampere hour	30 Ah
Panel type	Mono crystalline
Battery charging & discharging cycles	2000

Over Time Performance (IEC Compliant)

Median useful life L70B50

50,000 hour(s)

Approval and Application

Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Warranty period	3 years
EU RoHS compliant	Yes
CE mark	CE mark

Product Data

Order code	911401625808
Order product name	BRP715 LED120 CW Solar
Material number (12NC)	911401625808
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
EAN/UPC - Product	8719514954144
EAN/UPC - Case	8719514954144
Full product code	871951495414400
Full product name	BRP715 LED120 CW Solar

Controls and Dimming

Control interface	IR remote
Configurability	Configurable
Dimmable	Yes

General Information

Driver included

Yes

Mechanical and Housing

Dimensions (Height x Width x Depth)	133 x 366 x 1080 mm
Overall width	366 mm
Overall length	1,080 mm
Overall height	133 mm
Housing Color	Black

Application Conditions

Grid connection type	Off grid
Ambient temperature range for charging	0 °C to +55 °C °C
Ambient temperature range for discharging (when light is on)	-20 °C to +55 °C °C
Battery location	Inbuilt
Solar dimming profile	Dimming along with micriwave sensor

Temperature

Ambient temperature range

-20 to +55 °C

Light Technical

Color rendering index (CRI)	>70
Correlated Color Temperature (Nom)	5700 K
Optical cover/lens type	Polycarbonate
