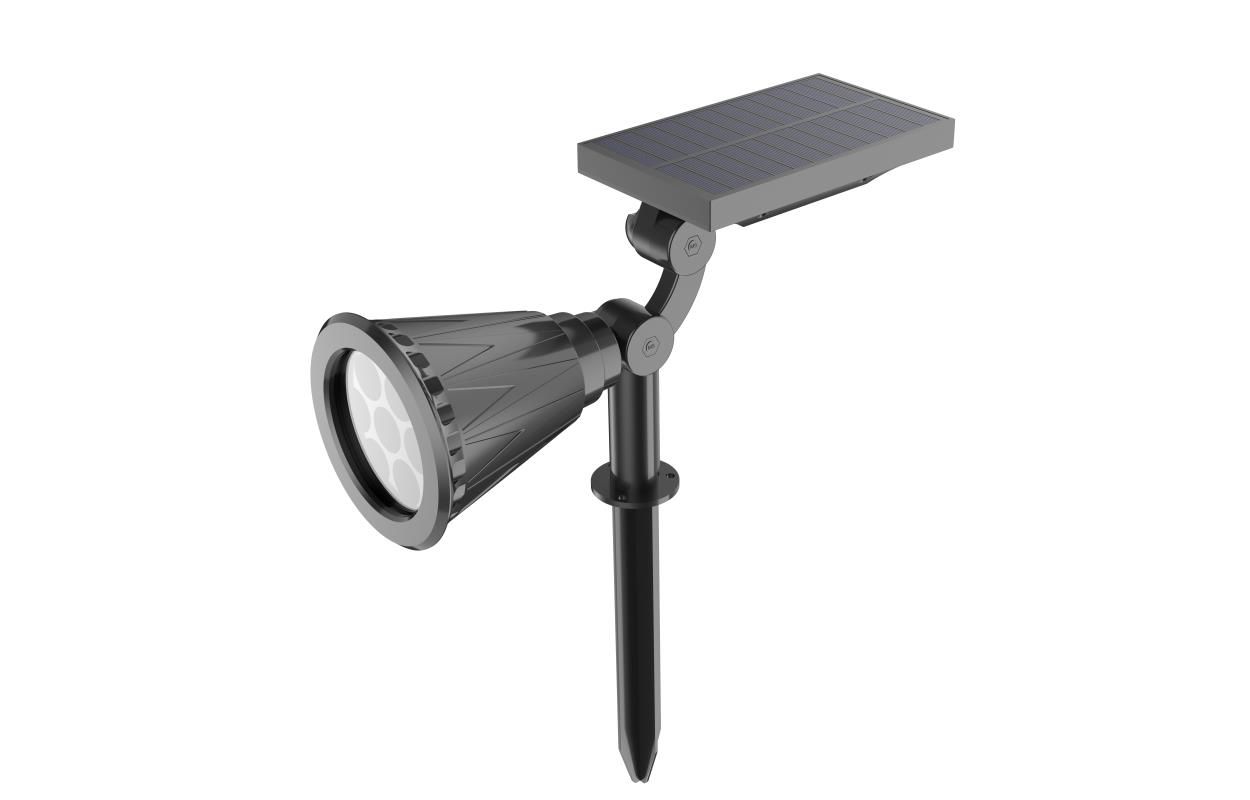

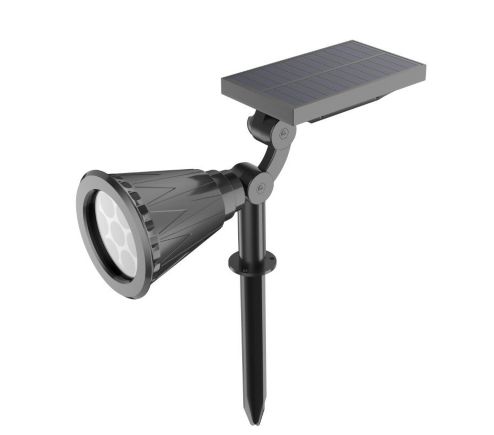

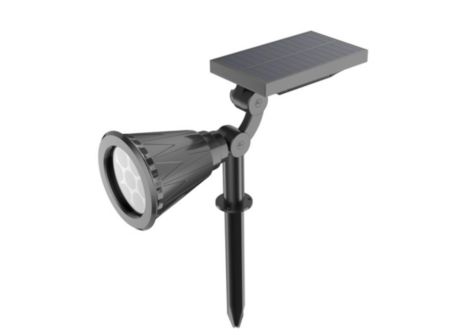

BGC010 LED1/730 Spot

Specifications Show all

Operating and Electrical

Panel peak wattage	1.75 W
Battery voltage	3.2 V
Cable	-
Battery type	Lithiumion - NMC
Panel voltage	5.8 V
Battery ampere hour	1.2 Ah
Panel type	Poly crystalline

Approval and Application

Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Warranty period	1 years

Product Data

Order code	911401833302
Order product name	BGC010 LED1/730 Spot
Material number (12NC)	911401833302
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	8
Full product code	692382865698099
EAN/UPC - Case	6923828657055
Full product name	BGC010 LED1/730 Spot

Controls and Dimming

Configurability	Configurable
Dimmable	Yes

General Information

Driver included

Yes

Mechanical and Housing

Overall length	275 mm
Dimensions (Height x Width x Depth)	313 x 84 x 275 mm
Overall width	84 mm
Overall height	313 mm
Housing Color	Black

Application Conditions

Grid connection type	Off grid
Battery location	Inbuilt
Solar dimming profile	Pre-set dimming with on-board switch to select

Temperature

Ambient temperature range

0 to +45 °C

Light Technical

Color rendering index (CRI)	>70
Correlated Color Temperature (Nom)	3000 K
Optical cover/lens type	Polycarbonate
