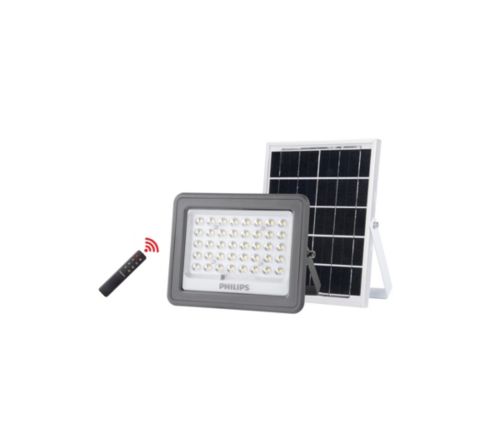

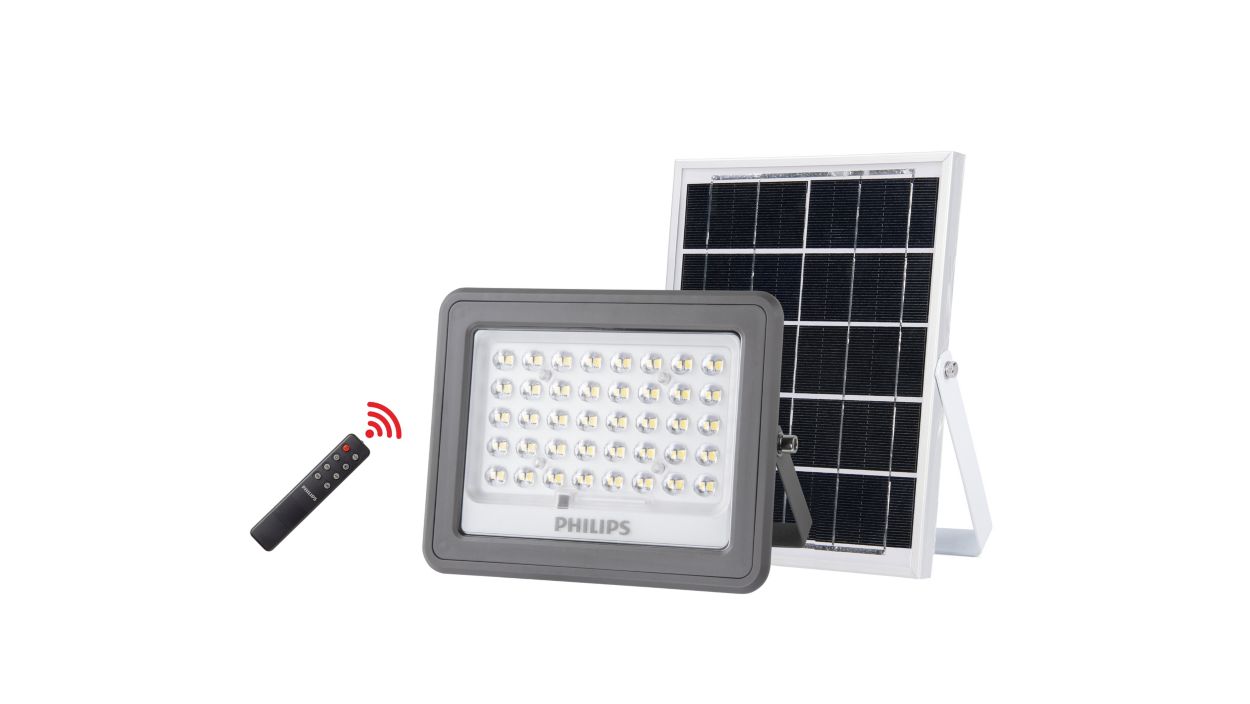

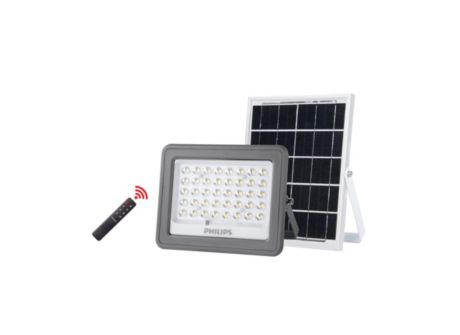

BVC080 LED9/765

Specifications Show all

Operating and Electrical

Panel peak wattage	7 W
Battery voltage	3.2 V
Charge controller type	PWM
Battery type	Lithium Ferro Phosphate
Battery ampere hour	5 Ah
Panel voltage	5 V
Panel type	Poly crystalline

Approval and Application

Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Warranty period	1 years

Product Data

Order code	911401827302
Order product name	BVC080 LED9/765
Material number (12NC)	911401827302
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	10
EAN/UPC - Case	6923828648800
Full product code	692382864895499
Full product name	BVC080 LED9/765

Controls and Dimming

Control interface	IR remote
Configurability	Configurable
Dimmable	Yes

General Information

Driver included

Yes

Mechanical and Housing

Overall length	183 mm
Dimensions (Height x Width x Depth)	143 x 48 x 183 mm
Overall width	48 mm
Overall height	143 mm
Material	Acrylonitrile-butadiene-styrene

Application Conditions

Battery location	Inside luminaire
Solar dimming profile	As per remote controller

Temperature

Ambient temperature range

0 to +45 °C

Light Technical

Color rendering index (CRI)	>70
Correlated Color Temperature (Nom)	6500 K
Luminous Flux	900 lumen
Optical cover/lens type	Polycarbonate
Luminous Efficacy (rated) (Nom)	150 lm/W
