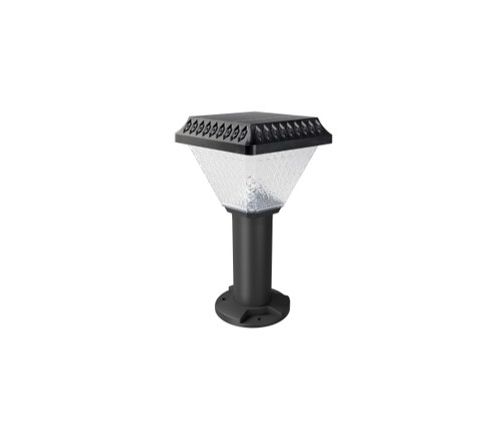

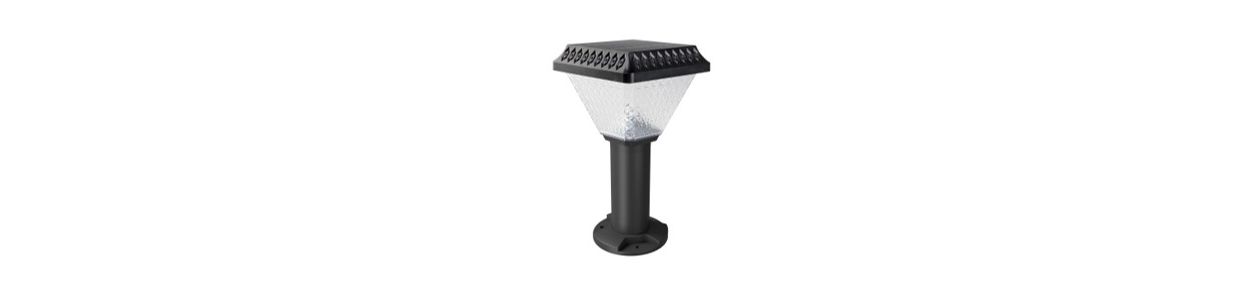

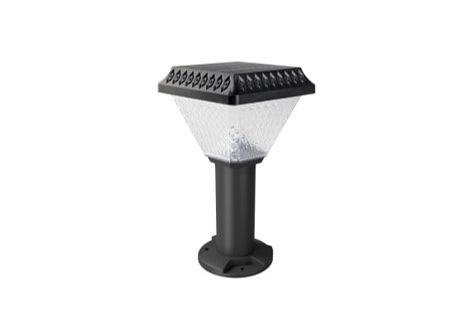

BGC010 LED2/730 SS

Specifications Show all

Operating and Electrical

Panel peak wattage	1.1 W
Battery voltage	3.7 V
Battery type	Lithiumion - NMC
Battery ampere hour	2 Ah
Panel voltage	5.5 V
Panel type	Poly crystalline

Approval and Application

Ingress protection code

IP65  [Dust penetration-protected, jet-proof]

Product Data

Order code	911401831602
Order product name	BGC010 LED2/730 SS
Material number (12NC)	911401831602
Numerator - Packs per outer box	10
Numerator - Quantity Per Pack	1
Full product code	692382865653999
EAN/UPC - Case	6923828656607
Full product name	BGC010 LED2/730 SS

Controls and Dimming

Configurability	Configurable
Dimmable	Yes

General Information

Driver included

Yes

Mechanical and Housing

Overall length	160 mm
Dimensions (Height x Width x Depth)	300 x 160 x 160 mm
Overall width	160 mm
Overall height	300 mm
Material	Acrylonitrile-butadiene-styrene

Application Conditions

Grid connection type	Off grid
Battery location	In-built
Solar dimming profile	Remote controller to chose from below pre-set modes - On 3Hrs Mode(Initial 200lumen 100%) 6Hrs Mode 12Hrs Mode Off

Temperature

Ambient temperature range

0 to +45 °C

Light Technical

Color rendering index (CRI)	>70
Correlated Color Temperature (Nom)	3000 K
Luminous Flux	200 lumen
Optical cover/lens type	Polycarbonate
