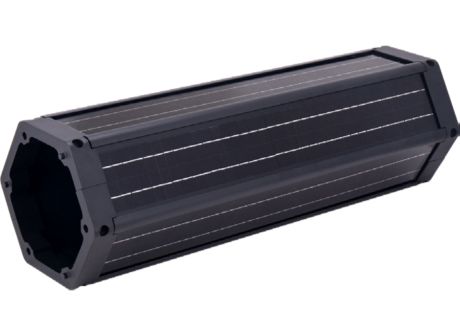

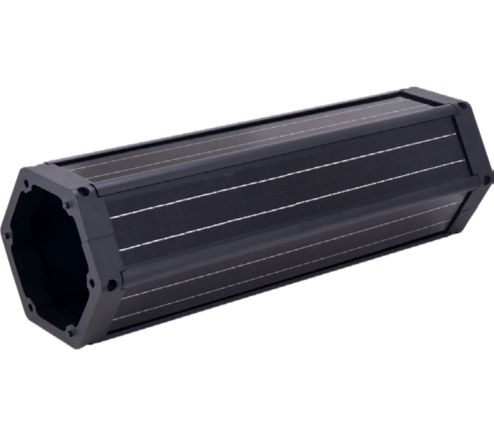

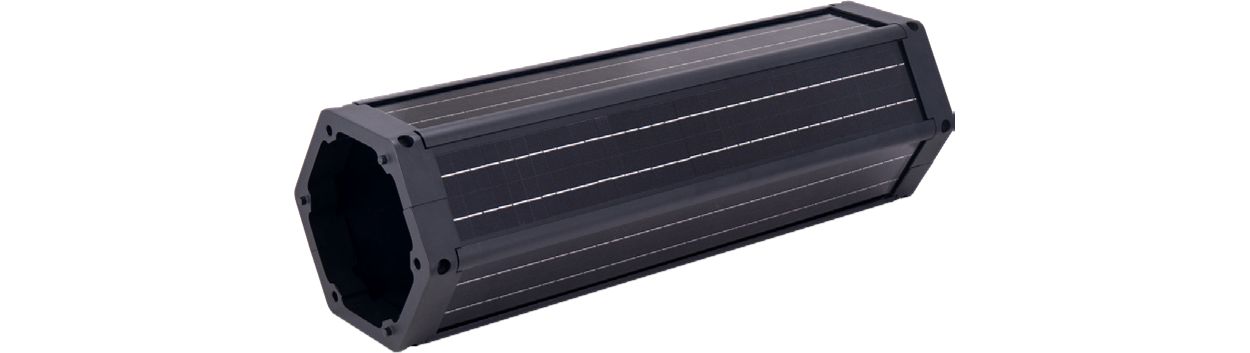

200Wp Vertical Panel Subsystem Vmpp 36V

Specifications Show all

Operating and Electrical

Panel peak wattage	190 W
Cable connection kit	Included
Panel voltage	36 V
Panel type	Mono crystalline

Approval and Application

Ingress protection code	IP55  [Dust accumulation-protected, jet-proof]
Warranty period	5 years
CE mark	CE mark
EU RoHS compliant	Yes

Product Data

Order code	911401822202
Order product name	200Wp Vertical Panel Subsystem Vmpp 36V
Material number (12NC)	911401822202
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
EAN/UPC - Case	8719514507463
Full product code	871951450746300
Full product name	200Wp Vertical Panel Subsystem Vmpp 36V

Mechanical and Housing

Dimensions (Height x Width x Depth)	2000 x 220 x 228 mm
Overall diameter	228 mm
Overall width	220 mm
Overall length	228 mm
Overall height	2,000 mm

Temperature

Ambient temperature range

-40 to +85 °C
