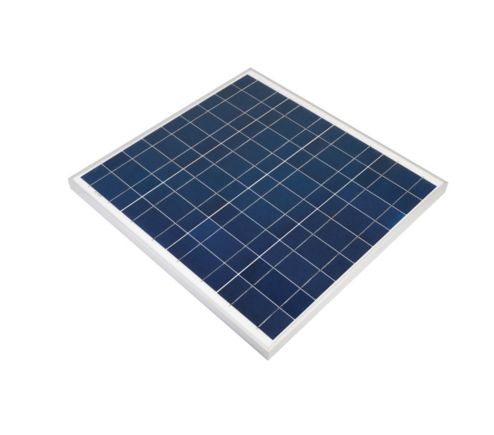

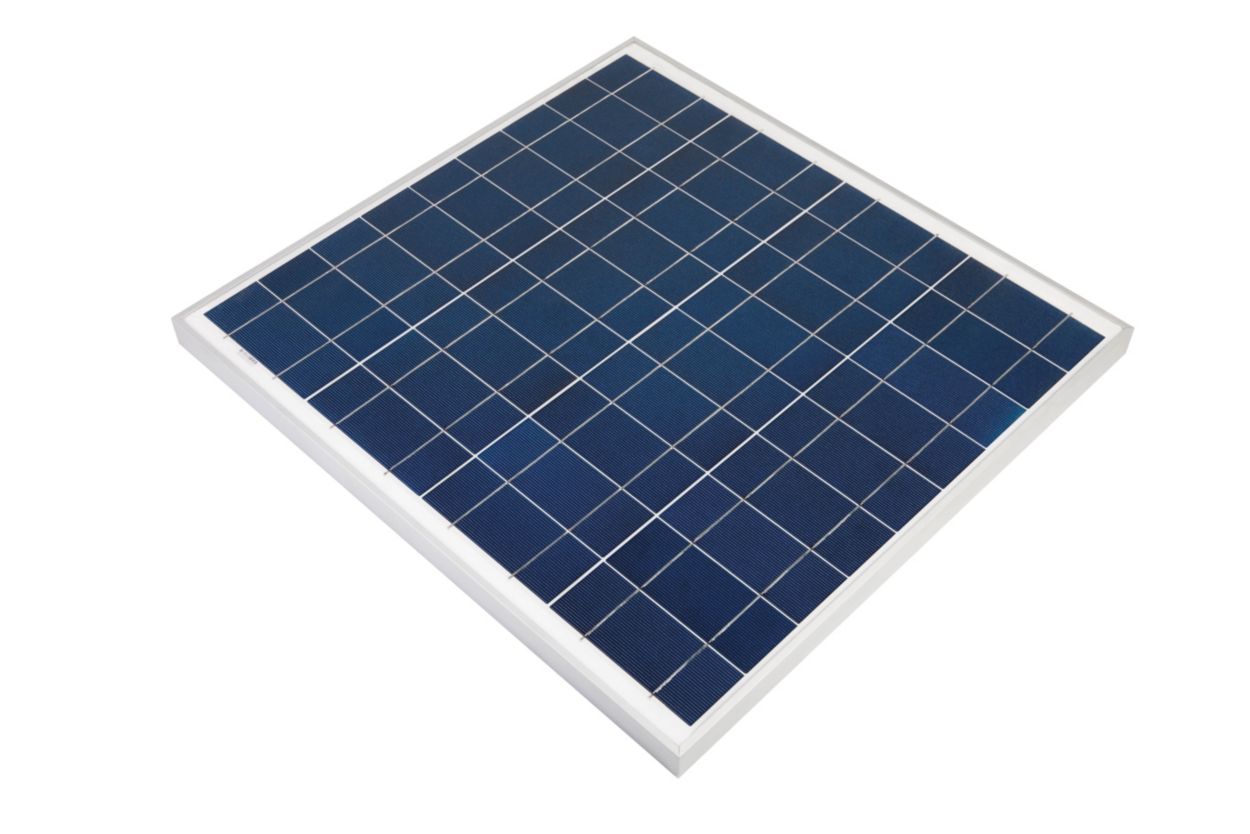

55W 17V Panel subsystem Vmpp 18.39V

Specifications Show all

Operating and Electrical

Panel peak wattage	55 W
Cable	Cable 1.0 m 4.0 sqmm with Molex Connectors
Cable connection kit	Included
Panel voltage	17 V
Panel type	Poly crystalline

Approval and Application

Ingress protection code	IP67  [Dust penetration-protected, watertight]
Warranty period	3 years
CE mark	CE mark

Product Data

Order code	911401803202
Order product name	55W 17V Panel subsystem Vmpp 18.39V
Material number (12NC)	911401803202
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	30
Full product code	911401803202
Full product name	55W 17V Panel subsystem Vmpp 18.39V

Mechanical and Housing

Dimensions (Height x Width x Depth)	35 x 666 x 558 mm
Overall width	666 mm
Overall length	558 mm
Overall height	35 mm

Temperature

Ambient temperature range

-40 to +85 °C
