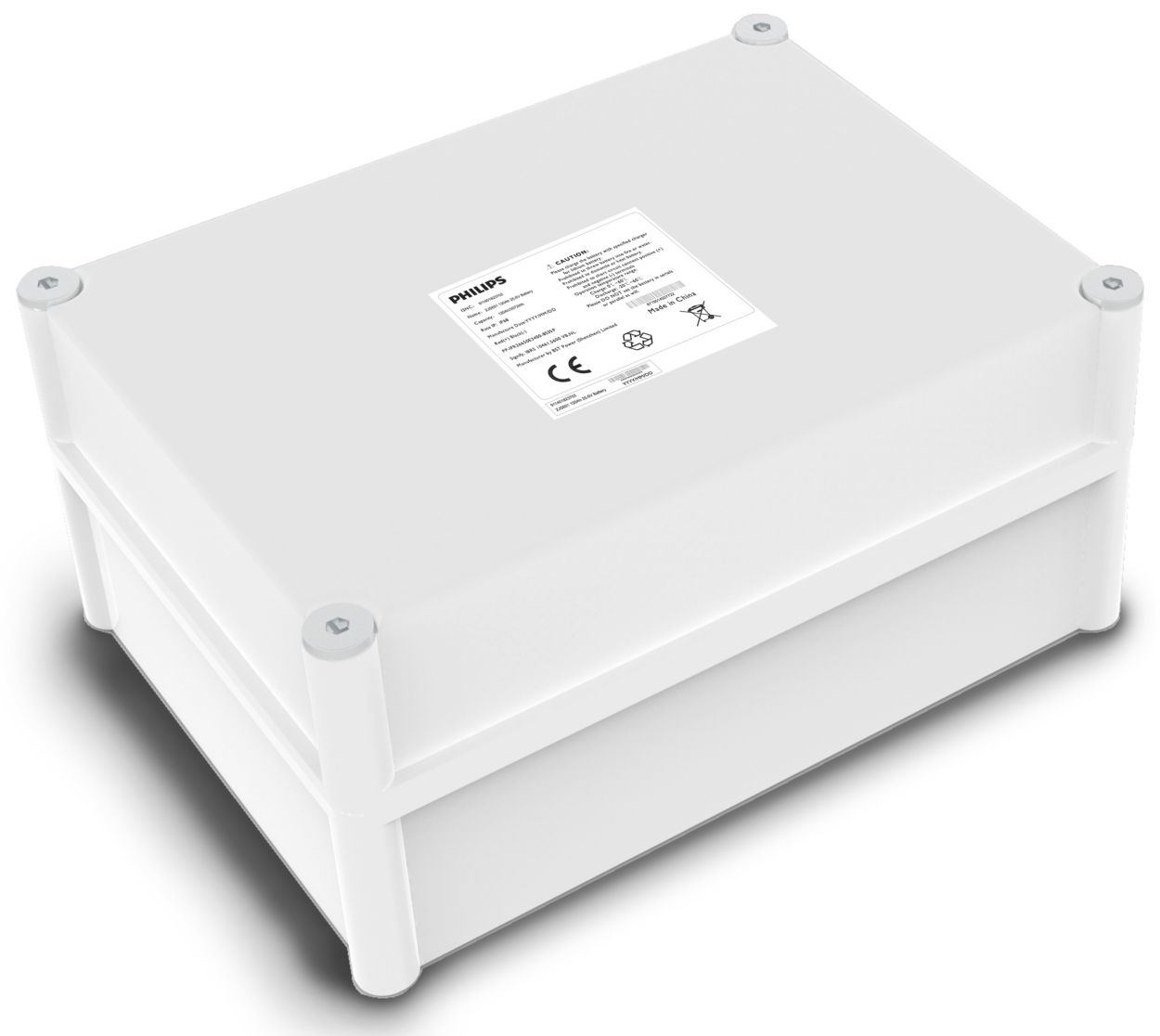

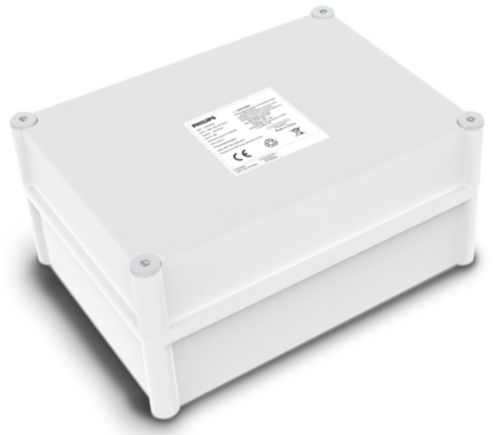

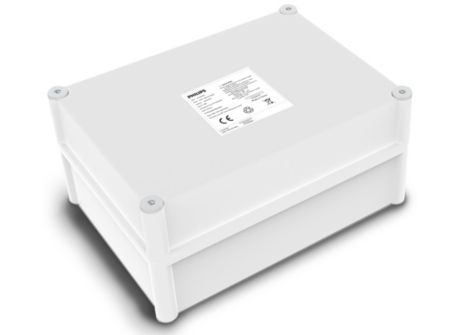

ZJS601 120AH 25.6V Battery

Specifications Show all

Operating and Electrical

Input Frequency	0 Hz
Cable	Cable 3.0 m with connectors
Line Frequency	0 Hz
Battery voltage	25.6 V
Battery type	Lithium Ferro Phosphate
Battery ampere hour	120 Ah
Cable connection kit	Included
Battery charging & discharging cycles	2000

Approval and Application

Ingress protection code	IP68  [Dust penetration-protected, pressure watertight]
Warranty period	5 years
CE mark	CE mark
EU RoHS compliant	Yes

Product Data

Order code	911401823702
Order product name	ZJS601 120AH 25.6V Battery
Material number (12NC)	911401823702
Numerator - Packs per outer box	1
Numerator - Quantity Per Pack	1
Full product code	871951450772200
EAN/UPC - Case	8719514507722
Full product name	ZJS601 120AH 25.6V Battery

Mechanical and Housing

Dimensions (Height x Width x Depth)	160 x 485 x 280 mm
Overall width	485 mm
Overall length	280 mm
Overall height	160 mm

Application Conditions

Ambient temperature range for charging	0 °C to +60 °C °C
Ambient temperature range for discharging (when light is on)	-20 °C to +60 °C °C

Temperature

Ambient temperature range

0 to +60 °C
