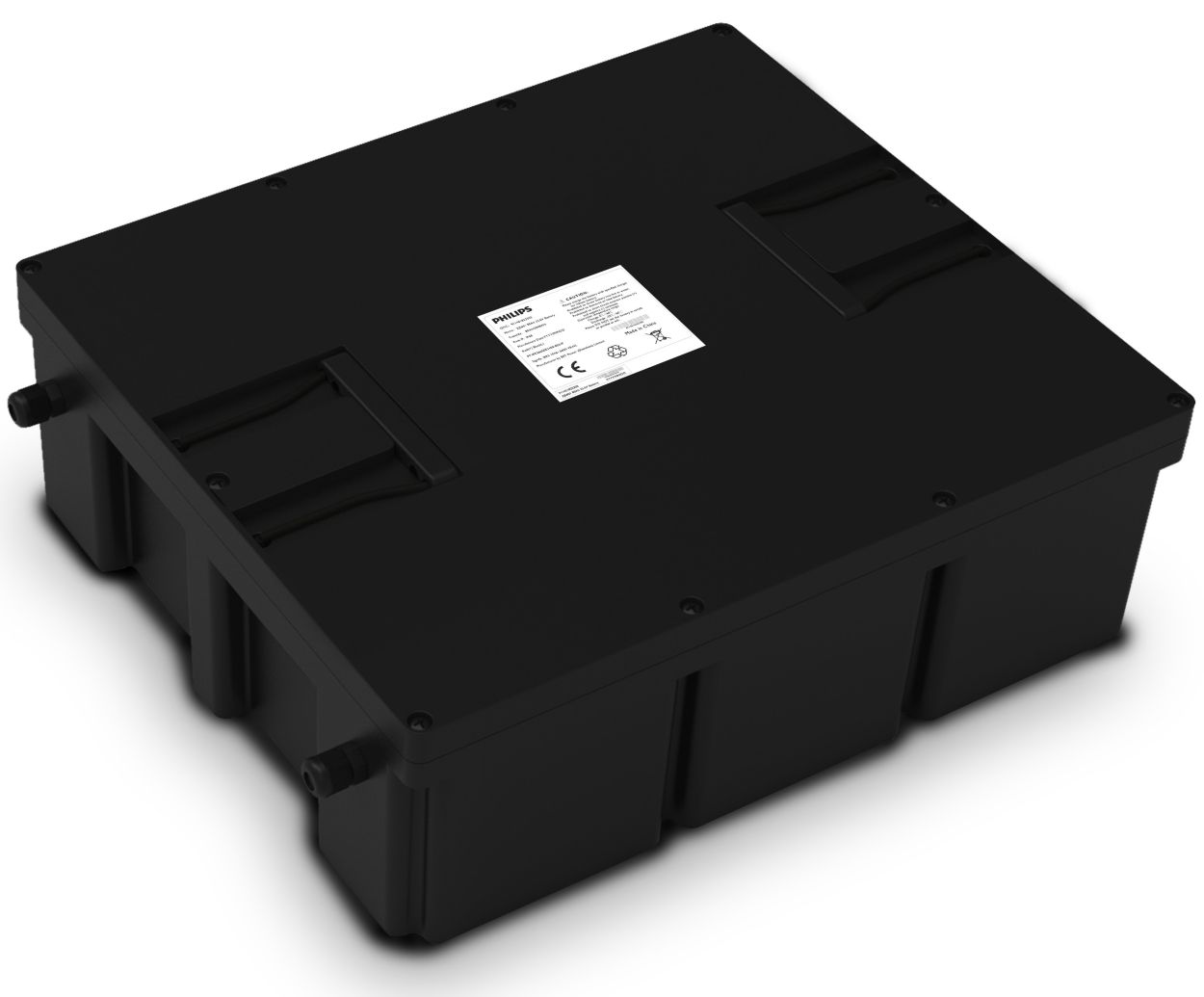

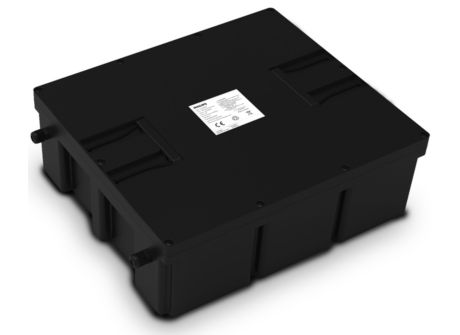

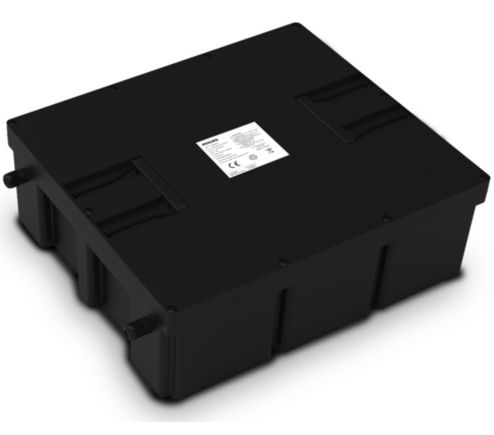

ZJS601 80AH 25.6V Battery

Specifications Show all

Operating and Electrical

Input Frequency	0 Hz
Battery voltage	25.6 V
Line Frequency	0 Hz
Cable	Cable 3.0 m with connectors
Battery type	Lithium Ferro Phosphate
Cable connection kit	Included
Battery ampere hour	80 Ah
Battery charging & discharging cycles	2000

Approval and Application

Ingress protection code	IP68  [Dust penetration-protected, pressure watertight]
Warranty period	5 years
CE mark	CE mark
EU RoHS compliant	Yes

Product Data

Order code	911401822302
Order product name	ZJS601 80AH 25.6V Battery
Material number (12NC)	911401822302
Numerator - Packs per outer box	1
Numerator - Quantity Per Pack	1
EAN/UPC - Case	8719514507395
Full product code	871951450739500
Full product name	ZJS601 80AH 25.6V Battery

Mechanical and Housing

Dimensions (Height x Width x Depth)	180 x 380 x 280 mm
Overall width	380 mm
Overall length	280 mm
Overall height	180 mm

Application Conditions

Ambient temperature range for charging	0 °C to +60 °C °C
Ambient temperature range for discharging (when light is on)	-20 °C to +60 °C °C

Temperature

Ambient temperature range

0 to +60 °C
