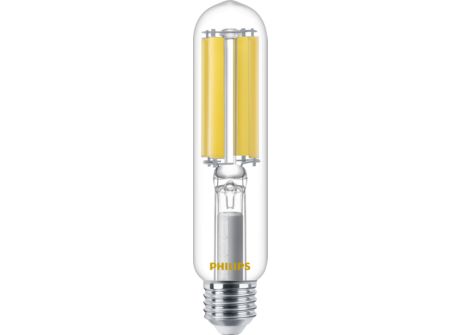

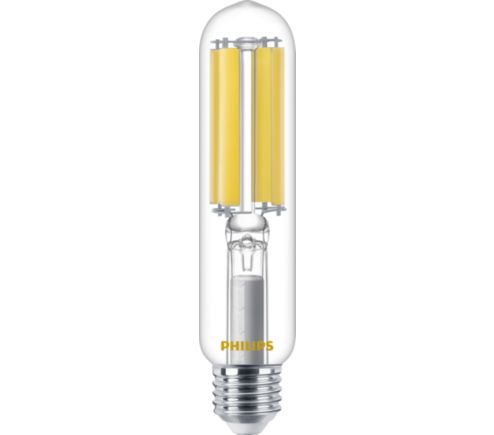

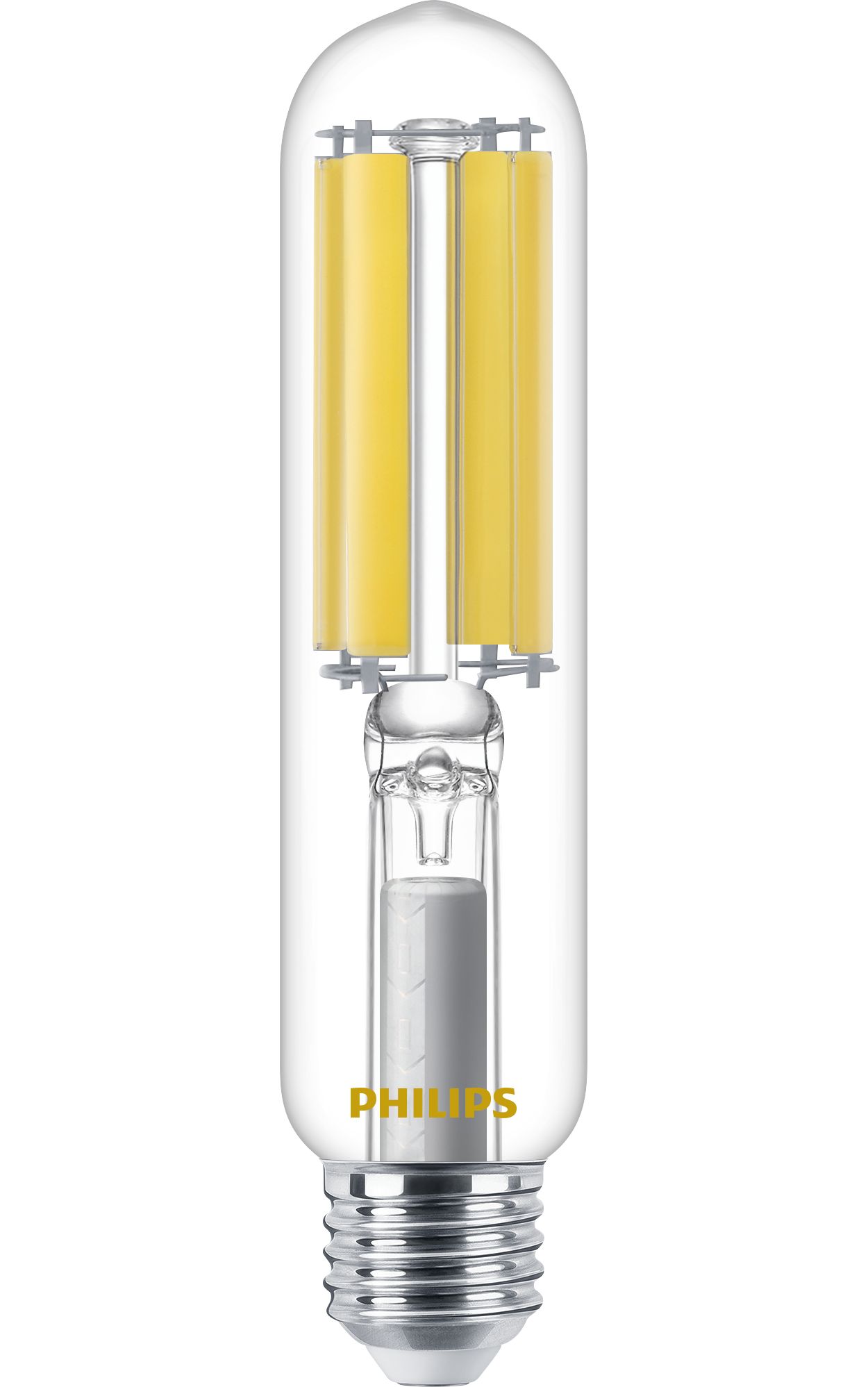

TForce Core LED road 17W 730 E27 MV

Specifications Show all

Operating and Electrical

Input Frequency	50 to 60 Hz
Wattage Equivalent	50 W
Line Frequency	50 to 60 Hz
Power Consumption	17 W
Warm-up time to 60% light	0.5 s
Voltage (Nom)	220-240 V
Starting Time (Nom)	0.5 s
Lamp Current (Nom)	80 mA
Power Factor (Fraction)	0.9

Approval and Application

Energy Consumption kWh/1000 h	17 kWh
EU RoHS compliant	Yes
EPREL Registration Number	574355
Energy Efficiency Class	C
CE mark	Yes

Product Data

Order code	929002484802
Order product name	TForce Core LED road 17W 730 E27 MV
Material number (12NC)	929002484802
EAN/UPC - Case	8719514316263
Full product code	871951431625600
Numerator - Packs per outer box	6
Numerator - Quantity Per Pack	1
Full product name	TForce Core LED road 17W 730 E27 MV

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape	T-shape
Bulb Finish	Clear

General Information

Cap-Base	E27  [E27]
Flux measurement reference	Sphere
Nominal lifetime	25,000 hour(s)
Lighting Technology	LED
Switching Cycle	15,000

Temperature

Ambient temperature range	-20 °C to 45 °C
T-Case Maximum (Nom)	29.7 °C

Light Technical

Color rendering index (CRI)	70
LLMF At End Of Nominal Lifetime (Nom)	70 %
Correlated Color Temperature (Nom)	3000 K
Color Designation	White (WH)
Color Consistency	<6
Color Code	730  [CCT of 3000K]
Luminous Efficacy (rated) (Nom)	164.00 lm/W
Luminous Flux	2,800 lumen
