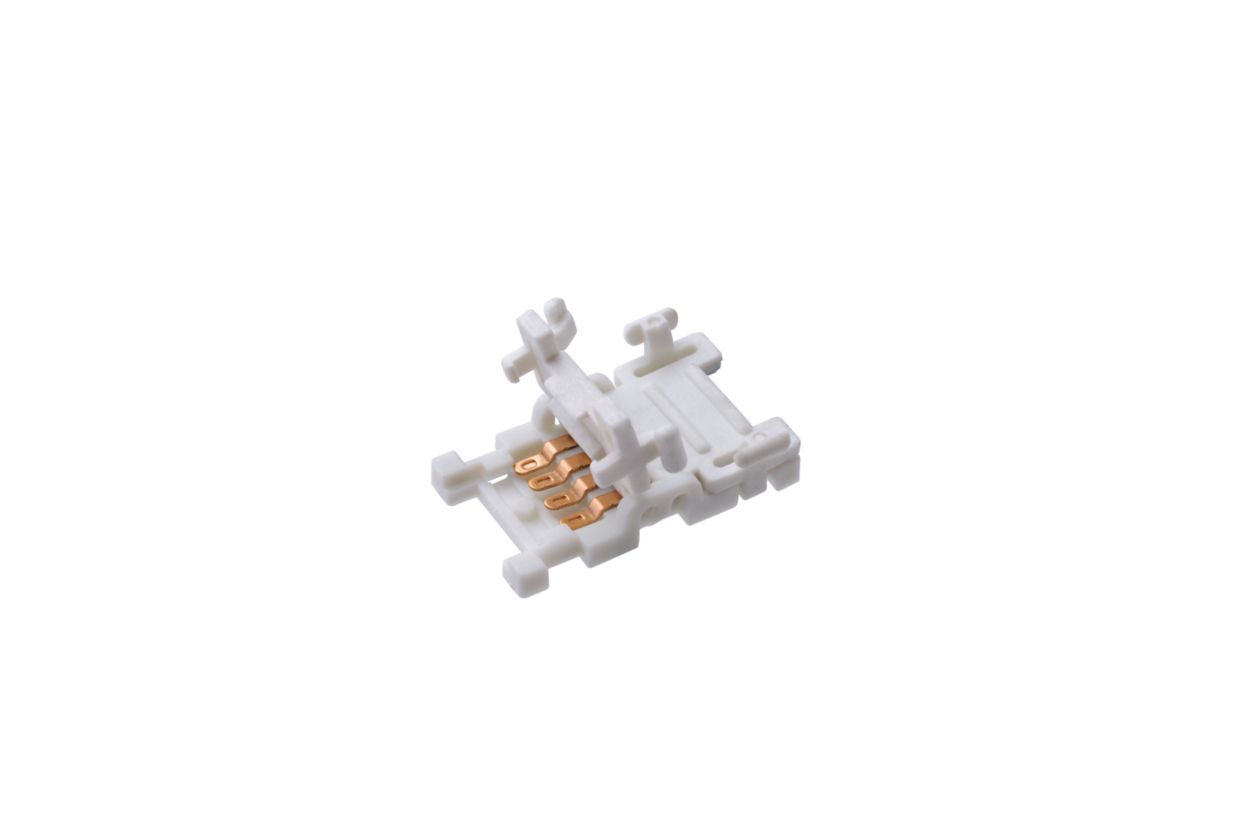

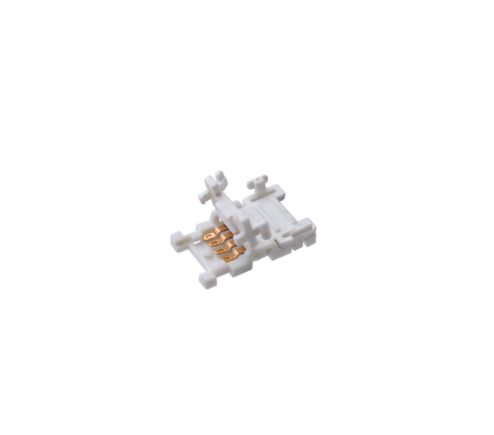

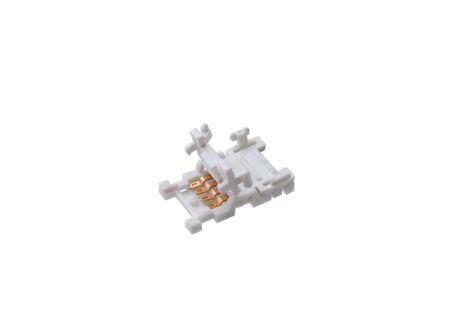

AC170Z connector

Specifications Show all

Operating and Electrical

Input Frequency	- Hz
Line Frequency	- Hz
Input Voltage	- V

Approval and Application

Ingress protection code	-
Mech. impact protection code	IK00  [No protection]
Protection class IEC	-
CE mark	-

Product Data

Order code	911401760452
Order product name	AC170Z connector
Material number (12NC)	911401760452
Numerator - Packs per outer box	20
Numerator - Quantity Per Pack	1
EAN/UPC - Case	6923828656263
Full product code	692382865626399
Full product name	AC170Z connector

General Information

Angle	-
Accessory color	White

Mechanical and Housing

Dimensions (Height x Width x Depth)	8 x 19 x 26 mm
Overall width	19 mm
Overall length	26 mm
Overall height	8 mm
