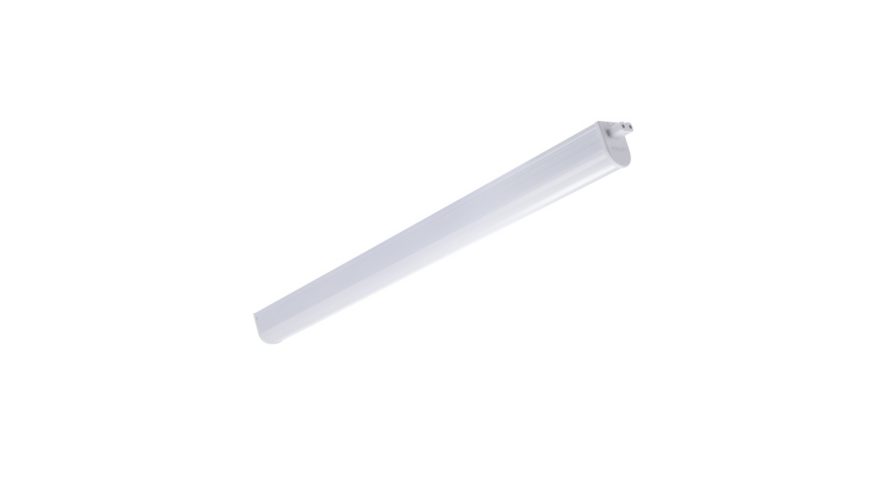

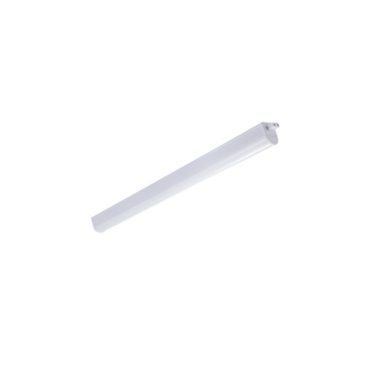

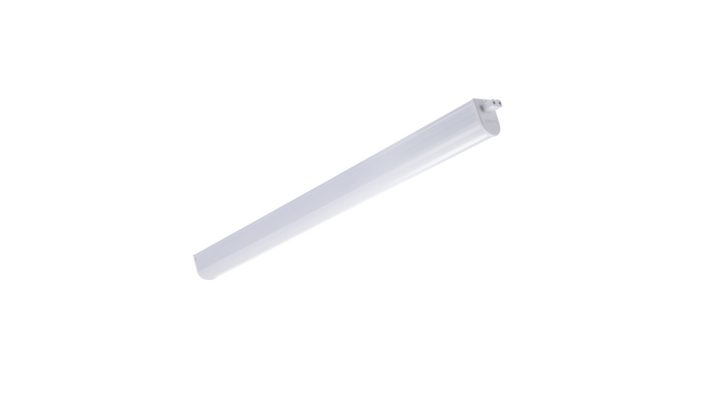

BN013C LED10/NW L600 G3

Specifications Show all

General information

Lamp colour code	840 neutral white
Optical cover/lens type	Polycarbonate
Control interface	-
Protection class IEC	Safety class II (II)
Flammability mark	F  [ For mounting on normally flammable surfaces]
CE mark	CE mark
Number of products on MCB (16 A type B)	10
Light source engine type	LED

Operating and electrical

Input Voltage	220 to 240 V
Input frequency	50 or 60 Hz
Inrush current	9 A
Power factor (min.)	0.9

Controls and dimming

Dimmable

No

Mechanical and housing

Housing material	Polycarbonate
Optical cover/lens material	Polycarbonate
Optical cover/lens finish	Opal
Overall length	586 mm
Overall width	28.4 mm
Overall height	35.7 mm
Effective projected area	0.017 m²
Colour	White

Approval and application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	IK02  [ 0.2 J standard]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	1000 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	100 lm/W
Lamp colour temperature	4000 K
Colour Rendering Index	>80
Initial chromaticity	0.3818, 0.3797, SDCM≤5
Initial input power	10 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-20 to +40 °C

Product data

Full product code	871951451791299
Order product name	BN013C LED10/NW L600 G3
EAN/UPC – product	8719514517912
Order code	911401809182
SAP numerator – quantity per pack	1
Numerator – packs per outer box	40
SAP material	911401809182
Copy Net Weight (Piece)	0.108 kg
