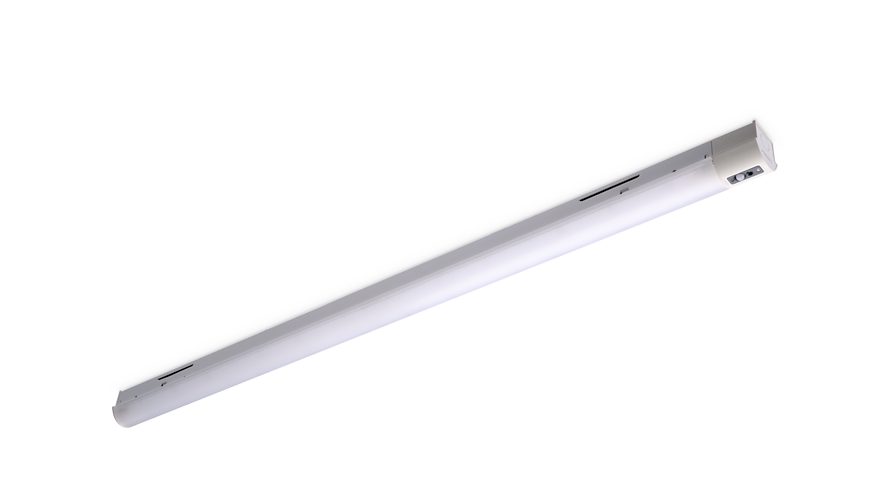

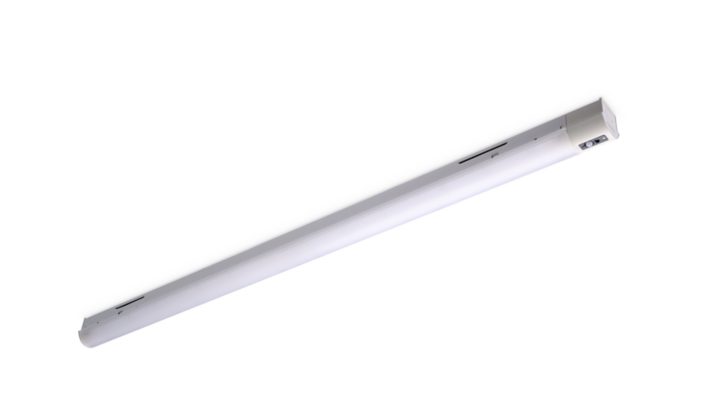

BN208X LED40/CW L1200 ACW2 OS ACF EN

Specifications Show all

General information

Lamp family code	LED40S  [ LED module, system flux 4000 lm]
Lamp colour code	Cool white
Light source replaceable	No
Number of gear units	1 unit
Gear	-
Driver/power unit/transformer	PSD  [ Power supply unit with DALI interface]
Driver included	Yes
Optic type	WB  [ Wide beam]
Optical cover/lens type	O  [ Opal]
Luminaire light beam spread	110°
Control interface	DALI
Connection	SI  [ Screw connection block]
Protection class IEC	Safety class I (I)
Glow-wire test	650/30  [ Temperature 650 °C, duration 30 s]
Flammability mark	NO  [ -]
CE mark	CE mark
ENEC mark	-
UL mark	No
Constant light output	Yes
Spare parts available	No
Number of products on MCB (16 A type B)	24
Light source engine type	LED

Operating and electrical

Input Voltage	220 to 240 V
Input frequency	50 to 60 Hz
Power factor (min.)	0.9
Power factor (nom.)	0.9

Controls and dimming

Dimmable

Yes

Mechanical and housing

Housing material	Steel
Optic material	Polycarbonate
Optical cover/lens material	Polymethyl methacrylate
Gear tray material	Steel
Optical cover/lens finish	Opal
Colour	White

Approval and application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	IK03  [ 0.3 J]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	4000 lm
Luminous flux tolerance	+/-7.5%
Initial LED luminaire efficacy	118 lm/W
Lamp colour temperature	6500 K
Colour Rendering Index	80
Initial chromaticity	-
Initial input power	34 W
Power consumption tolerance	+/-10%

Over time performance (IEC compliant)

Median useful life L70B50

50000 h

Application conditions

Ambient temperature range	0 to +40 °C
Maximum dimming level	1% (depends on dimmer, ELV)

Product data

Full product code	911401831699
Order product name	BN208X LED40/CW L1200 ACW2 OS ACF EN
Order code	911401831699
SAP numerator – quantity per pack	1
Numerator – packs per outer box	1
SAP material	911401831699
Copy Net Weight (Piece)	1.800 kg
